BWQ-1500/3000
TSD

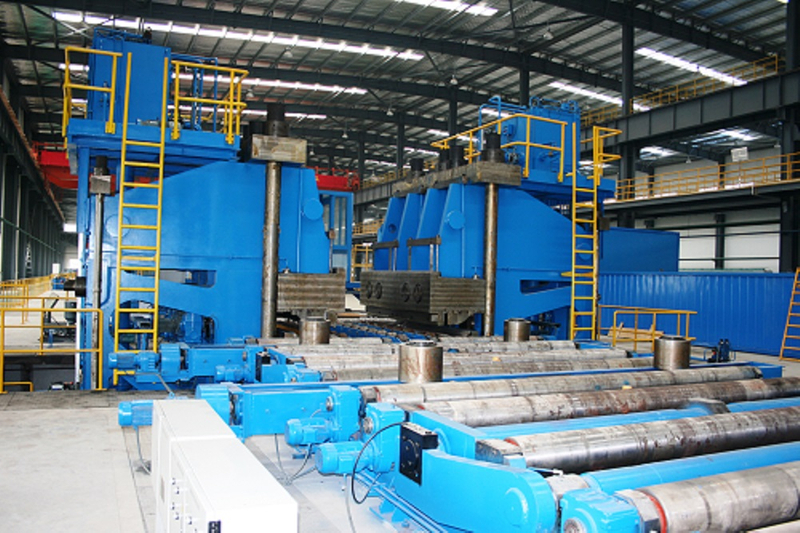

Plate Crimping Press
model BWQ-1500/3000
Pipe specifications:
Plate length: 8000-12200mm
Plate thickness: 8--32mm
Steel grade: X70 (API 5L) up
Production capacity: 7 pieces/ hour
Features:
- Used in LSAW production line
- Two crimping presses arranged oppositely
- Prebend plate edges to ensure the roundness of pipe and reduce the overlong straight edge.
- Step feeding
- Small flanging force and wider range for curvature radius of flange plate
- CNC control
- Easy to operate
Plate Crimping Press
model BWQ-1500/3000
Pipe specifications:
Plate length: 8000-12200mm
Plate thickness: 8--32mm
Steel grade: X70 (API 5L) up
Production capacity: 7 pieces/ hour
Features:
- Used in LSAW production line
- Two crimping presses arranged oppositely
- Prebend plate edges to ensure the roundness of pipe and reduce the overlong straight edge.
- Step feeding
- Small flanging force and wider range for curvature radius of flange plate
- CNC control
- Easy to operate
Main specifications
Name | Unit | Quantity | Remarks |
Single-side press force of die | KN | 2×15000 | |
One side clamping force | KN | 2100 | |
, Pressing and clamping cylinders working pressure | MPa | Max 28 | |
Lifting strokes of low-die-beam | Mm | Max 280 | |
Lifting strokes of pressing-beam | mm | Max.115 | |
The distance between upper surface of roller and lower limb of upper tool | mm | 75 | |
Die length | mm | 3000 | |
Useful length of die | mm | 2000 | |
Changeover portion of low die | mm | 600 inlet 600 100 outlet 100 | |
Stepping length of crimping | mm | 1900 | |
Tolerance of Stepping length | mm | ±50 | |
Crimping speed | /S | 13 | |
Returning speed | /S | 90 | |
Clamping speed | /S | 90 | |
Width range of plate for one-time crimping | mm | 1450~4500 | |
Movable distance between right and left machine | mm | 1750 About 1750 | |
Total power of machine | KW | 745 | ,Including main and secondary |
(××) Measurement(L×W×H) | mm | 33500×10500×7475 | , Including main and secondary |
Height above floor | mm | 3450 | |
Weight | 355,000 |
Main specifications
Name | Unit | Quantity | Remarks |
Single-side press force of die | KN | 2×15000 | |
One side clamping force | KN | 2100 | |
, Pressing and clamping cylinders working pressure | MPa | Max 28 | |
Lifting strokes of low-die-beam | Mm | Max 280 | |
Lifting strokes of pressing-beam | mm | Max.115 | |
The distance between upper surface of roller and lower limb of upper tool | mm | 75 | |
Die length | mm | 3000 | |
Useful length of die | mm | 2000 | |
Changeover portion of low die | mm | 600 inlet 600 100 outlet 100 | |
Stepping length of crimping | mm | 1900 | |
Tolerance of Stepping length | mm | ±50 | |
Crimping speed | /S | 13 | |
Returning speed | /S | 90 | |
Clamping speed | /S | 90 | |
Width range of plate for one-time crimping | mm | 1450~4500 | |
Movable distance between right and left machine | mm | 1750 About 1750 | |
Total power of machine | KW | 745 | ,Including main and secondary |
(××) Measurement(L×W×H) | mm | 33500×10500×7475 | , Including main and secondary |
Height above floor | mm | 3450 | |
Weight | 355,000 |
