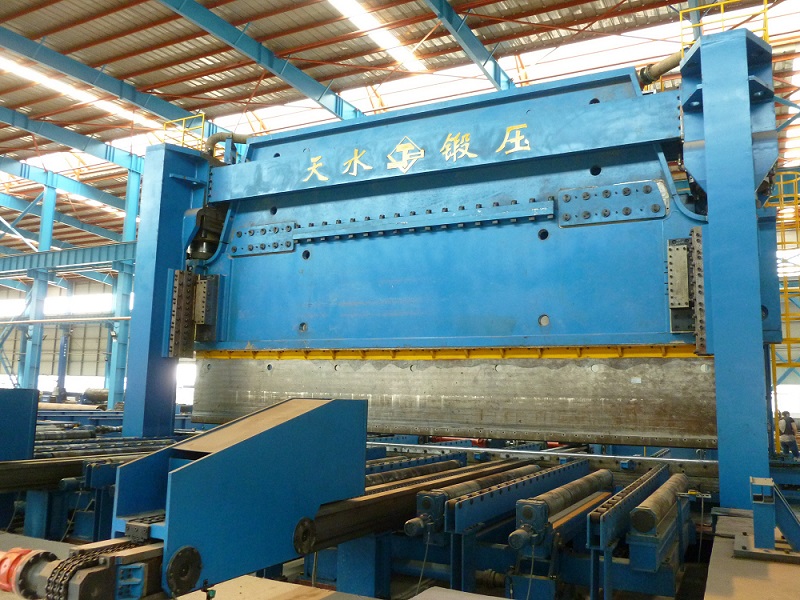

Pipe Forming Press (TDY37K-3500/1120×13000)

Quantity:
  • TDY37K-3500/1120×13000
  • TSD

LSAW Pipe Forming Press
Model TDY37K-3500/1120×13000

Features:
- Designing by ANSYS, and Optimizing by simulation model
- ASTM283M Gr.D steel to be used for fully welded construction
-Table, Upright & Ram designed as full rigidity to ensure full loading working
- Right-and-left oil cylinder synchronization (Y1,Y2) achieved by separated Germany electrical-hydraulic
  proportional valve with high stability .
- Fully closed loop control with high precision
- Mechanical crowning on table
- Installing faying surfaces of oil cylinders, linear guide, working table processed
  at one time by heavyduty floor milling machine with good parallelism and perpendicularity
- Eccentric loading working available
- Special top tool and bottom tool for pipe
- CNC Front and back feeding system
- Overloading overflow protection





Technical Specifications

Name
Data

Unit

Pipe forming press
Nominal pressure35000KN

Length of working table
13000mm

Working table width
1300mm

Effective internal distance
12500mm

Width of side throat
1800mm

Ram stroke
400mm

Max. opening height
2890mm

Quantity of main oil cylinder
2pic.
Ram speedapproaching speed60mm/s

Working speed
6mm/s

Return speed
55mm/s
Main power motor2×90KW

Dimensions
Length17000mm
Width8500mm

Height above the ground
9200mm

Depth of ground
5500mm


Secondary mechanism


Longitudinal feeding mechanism

Specification

Data

Unit

Remarks

Effective length
13000mm

Feeding effective width
4500mm

Feeding speed
270mm/sAdjustable

Roll motor
12×1.5KW


Measurements

Length
15000mm

Width
4800mm

Height
820mm

Front feeding mechanism

Fixed front feeding supporters
3325mm7 pic in total

Idle front supporter



front feeding mechanism
Feeding stroke
8000mm

Feeding speed
12m/min
Max.

Positioning precision
±0.3mm

Rear feeding mechanism

Fixed rear supporter length
3200mm4 pic in total
idle rear supporter



Front feeding mechanism

Feeding stroke
3180mm

Feeding speed
12m/min
Max.

Positioning precision
±0.3mm

Out let mechanism

Out let mechanism

Out-let cylinder
D=90mm

Outlet force
160KN7 pic in total

Hydraulic unit power
22KW
Side extractor
Outlet force
90KN

Out let speed
12M/min

Forming press unit


Height of plate from floor
750mm

7
Control axis 7
Y1,Y2,X1,R1,X2,R2,  Z
Main machine: Y1,Y2,  front: X1,R1,
Rear: X2,R2,  Z


Total weight
660
Ton


Standard configuration:
- CNC system DA66T up,Delem,Holland/DNC880S,Cybelec, Switzerland/ESA S560,Italy
- Electrical-hydraulic proportional synchronous valve group: Hoerbiger/Bosch,Germany
- Main electrical components: Schneider
- Optical scale Givi, Italy
- Gear pump with low noise: Nachi, Japan
- Main oil cylinder seal ring: NOK,Japan
- Ball screw and linear guide: ABBA, Taiwan
- Electrical cabinet wind cooling

Options
-Throat depth
-Top and bottom tools
-Light curtain
-Oil cooler/warmer
-CE certificate

Production technological process
Steel plate to warehouse →physical & chemical inspection→steel plate ball blasting (dustproof) processing →
cutting through CNC  flame cutting machine →cutting and processing to each welding junction plane →compound welding→
Air protecting welding →Stress relief by electrical furnace →processing through heavy-duty floor  type boring and milling
machine, heavy-duty gantry milling machine →Fabrication.

Packing:
Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container and In bulk.
