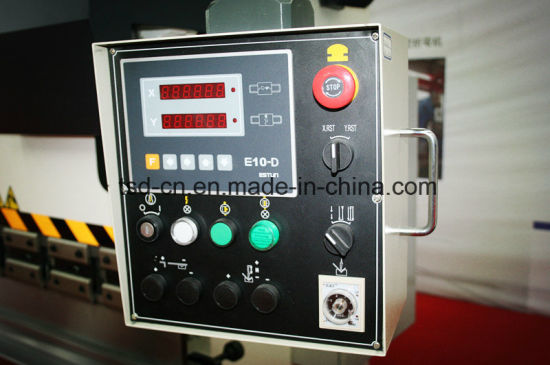

WH67Y-170/3100
TSD
The WH67Y-170/3100 is a state-of-the-art 170t CNC hydraulic press brake engineered to deliver high-precision sheet metal bending for medium to large-scale fabrication projects. Equipped with the industry-leading DELEM DA-52T control system featuring a 10.4-inch color touchscreen, this machine offers intuitive programming and real-time process visualization. Its double-cylinder hydraulic drive system with synchronous control ensures ±0.1° angle accuracy and 0.02mm repeatability, making it suitable for complex bending tasks requiring consistent results.
The 3100mm working length provides ample space for processing large sheets, while the 320mm throat depth allows for deep flanging operations and the formation of complex profiles such as U-channels and box sections. The machine incorporates an electro-hydraulic servo system that adjusts power output based on workload, minimizing energy consumption by up to 30% compared to traditional hydraulic press brakes. Its robust welded steel frame undergoes finite element analysis (FEA) to ensure optimal stress distribution, while the guide rails are treated with high-frequency quenching for extended service life.
Safety is prioritized with features including a full-length light curtain, emergency stop buttons at multiple locations, and a hydraulic overload protection system. The machine also includes a manual jog mode for precise tool alignment and a diagnostic function that alerts operators to potential issues such as pressure anomalies or sensor malfunctions.
Nominal Force: 1700kN (170t)
Working Length: 3100mm
Throat Depth: 320mm
Slider Stroke: 150mm
Maximum Open Height: 450mm
Backgauge System: 3-axis (X, Y1, Y2) with ball screw drive
Backgauge Accuracy: ±0.05mm
Bending Speed: 5-15mm/s (adjustable in 0.1mm/s increments)
Positioning Speed: 200mm/s
Motor Power: 15kW
Hydraulic Oil Capacity: 250L
Machine Dimensions: 4500mm × 2200mm × 2800mm
Net Weight: 18000kg
CE Certification: Compliant with EU Machinery Directive 2006/42/EC
Construction: Forms steel beams for building structures, window frames with precise angles, and HVAC ducts with tight seals. It is widely used in the production of prefabricated building components and structural steelwork.
Railway Industry: Manufactures train carriage components such as side panels and roof structures, as well as track accessories including rail clips and brackets. The high accuracy ensures proper fitment in railway assemblies.
Energy Sector: Processes solar panel mounts with consistent hole positions, wind turbine parts requiring high strength, and power distribution cabinets with complex internal partitions. Its efficiency supports large-volume production for renewable energy projects.
General Fabrication: Handles cabinet manufacturing for electrical enclosures, pipe fittings with flanged connections, and structural steel works for industrial machinery. It accommodates materials ranging from mild steel and stainless steel to aluminum and galvanized sheets.
Q: Can the WH67Y-170/3100 integrate with CAD software?
A: Yes, the DELEM DA-52T control system supports DXF/DWG file imports directly from popular CAD software such as AutoCAD, SolidWorks, and Tekla. This feature allows operators to convert 2D part drawings into bending programs in minutes, streamlining the programming process for complex geometries and reducing manual input errors.
Q: What is the maximum sheet thickness it can bend?
A: The machine effectively bends 6mm mild steel (yield strength 235MPa) or 4mm stainless steel (304 grade) at full working length. For shorter bending lengths (≤1000mm), it can handle up to 8mm mild steel or 6mm stainless steel, depending on the bending angle and tooling used.
Q: Does the machine include safety features?
A: Standard safety features include Type 4 light curtains (EN ISO 13855) to prevent operator access during bending cycles, emergency stop buttons with mushroom heads at the control panel and machine sides, anti-twist mechanisms for the slider, and a hydraulic overload protection system that automatically stops operation if pressure exceeds safe limits.
Q: How long is the warranty period?
A: The machine comes with a 12-month warranty covering all non-consumable parts, including the frame, hydraulic cylinders, control system, and drive components. Consumable items such as filters, seals, and light curtain bulbs are covered for 3 months. Extended warranty options up to 3 years are available for purchase, including annual maintenance services.
