Ever wondered if a press brake and a bending machine are the same? While both are essential for metal fabrication, they serve distinct purposes.
In this article, we’ll compare these tools and help you understand their unique functions, advantages, and when to use each. You’ll learn about key differences in functionality, material compatibility, precision, and cost.

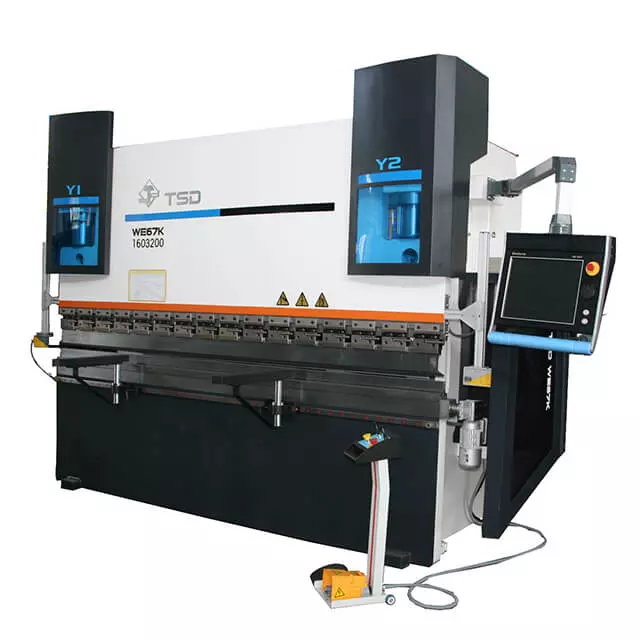

A press brake is a machine used to bend sheet metal into precise shapes. It consists of several key components:
● Ram: The moving part that drives the punch into the material.
● Workbench: Supports the sheet metal as it’s being bent.
● Punch: The upper tool that applies force to the material.

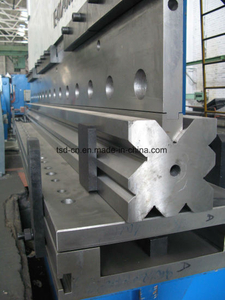

● Dies: The lower tool that shapes the material as it’s bent.
Press brakes can be either hydraulic or mechanical. Hydraulic press brakes use fluid pressure to move the ram, while mechanical press brakes rely on a mechanical drive system, offering different force control and operational efficiency.
The bending process begins when the sheet metal is placed between the punch and die. The ram moves the punch downward, applying force to the sheet metal, bending it into the die's shape. The punch and die work together to shape the material with high precision. This system allows for versatility, handling various materials and thicknesses efficiently. Press brakes can produce consistent, accurate bends across multiple parts in a production run.
Press brakes are widely used in many industries, including:
● Automotive: Creating parts like car body panels and structural components.
● Construction: Bending metal sheets for structural framing and building components.
● Furniture Manufacturing: Shaping metal parts for items like tables, chairs, and shelves.
A bending machine, also known as a panel bender or roll bender, is used to create curved or rounded shapes from sheet metal. The key components include:
● Upper and lower blades: These blades apply force to bend the metal.
● Counterblades: Used to support the metal during the bending process, helping ensure an accurate shape.
● Blank holders: Secure the material in place to prevent movement during bending.
These machines are designed to provide smooth and consistent bends for a variety of metal types.
A bending machine uses a rolling mechanism to form the sheet metal. As the material is fed into the machine, the upper and lower blades apply pressure, forcing the material into the desired shape. The CNC automation in modern machines ensures precision and repeatability, making the process efficient and accurate. The system's advanced controls allow for tight tolerances and complex bends without manual adjustments.
Bending machines excel in industries requiring consistent and smooth bends in metal. Some common applications include:
● Pipe Manufacturing: Bending pipes or tubes into specific shapes for various industrial uses.
● Structural Components: Creating metal parts for building frames, beams, and other structures.
Their versatility makes them ideal for producing a wide range of bent metal components.
● Press Brake: A press brake is ideal for making sharp bends with high precision. It can handle thicker materials, ensuring accuracy even with complex shapes. This makes it perfect for creating parts requiring tight angles and detailed shapes.
● Bending Machine: A bending machine is more suited for creating smooth, curved shapes and large-radius bends. It is more efficient for bending thin materials, especially in high-volume production where the bends need to be consistent across many parts.
● Press Brake: The press brake uses a punch and die system to apply significant force to bend metal. This system is great for handling thicker materials and producing precise angles with minimal operator intervention.
● Bending Machine: A bending machine uses a rolling mechanism to apply pressure, creating smooth bends without sharp angles. This process is less forceful but ideal for materials that require gradual shaping, like thin sheets.
● Press Brakes: Press brakes handle a wide range of materials, including thicker metals and harder alloys. The machine requires more manual intervention to adjust the tooling based on material thickness and bend complexity.
● Bending Machines: Bending machines are better suited for thin sheets and are particularly useful for curved or cylindrical shapes. They offer a more automated process, reducing the need for frequent adjustments and enhancing efficiency for certain bending tasks.
● Press Brakes: Press brakes generally have slower tool changes due to the manual adjustments required for different materials and bends. Operator involvement is higher, as they must set up each job carefully, which can slow down the process.
● Bending Machines: Bending machines are designed for faster setup times and automated processes. They can handle high-volume production more efficiently, reducing downtime between part setups. This makes them ideal for environments where quick throughput is crucial.
● Press Brakes: While press brakes offer high precision, they rely heavily on operator skill. Inconsistent adjustments or improper setup can lead to deviations in part quality. However, when set up correctly, they provide consistent accuracy for complex, one-off projects.
● Bending Machines: Bending machines provide high repeatability, especially with CNC automation. Once programmed, they produce consistent output across multiple runs, making them perfect for complex parts that need to be repeated with minimal variation. The automated nature of the machine helps reduce errors and increases overall consistency.
● Press Brakes: Press brakes typically have a lower initial cost compared to bending machines. They are a more affordable option for businesses that need high force application and precise bends for thicker materials.
● Bending Machines: Bending machines often require a higher upfront investment due to their automation features and capability to handle large-volume production. However, they may offer better value over time for high-throughput applications, reducing labor costs and setup time.
● Press Brakes: Due to the repeated force applications, press brakes require more maintenance. Tool wear is common, especially in high-volume settings, and parts like punches and dies may need frequent replacements.
● Bending Machines: Bending machines generally have lower maintenance costs. Their automated processes and fewer tool changes reduce the wear and tear on components. The reduced manual intervention leads to fewer maintenance issues over time.
When deciding between a press brake and a bending machine, several factors come into play:
● Material Type: If you're working with thicker materials, a press brake may be the best choice. For thinner sheets, a bending machine can offer more efficiency.
● Bend Complexity: Press brakes are better for sharp bends and intricate shapes, while bending machines excel at smooth, large-radius bends.
● Production Volume: If you're producing high volumes of parts, a bending machine’s faster setup and automated process may be a better fit. For lower-volume, more complex bends, press brakes offer higher precision.
● Machine Compatibility: Consider whether your current setup supports the tooling for each machine. Press brakes can work with older machines, while bending machines are designed for modern CNC controls.
● Challenges of Switching: Moving from press brakes to bending machines may require significant adjustments, especially if your operations are designed for manual tooling setups. The tooling compatibility may also differ, requiring investment in new fixtures or adaptors.
● Benefits of Combining Both Tools: In some cases, using both press brakes and bending machines can provide the best of both worlds. For example, you can use a press brake for intricate precision bends and a bending machine for high-volume, consistent curves. Combining both tools allows you to optimize production efficiency based on the job at hand.
Press brakes offer precision for sharp bends and complex shapes, ideal for thicker materials. Bending machines excel in smooth curves and high-volume production with faster setups.
Choose the right tool based on material type, bend complexity, and production volume. For high precision, go with a press brake; for efficiency, a bending machine may be better.
To explore our full range of press brakes and bending machines and find the perfect solution for your production needs, visit Tianshui Metalforming Machine Tool (Group) Co., Ltd.
Q: Can a press brake replace a bending machine?
A: A press brake can handle many bending tasks, but it may not be as efficient for high-volume production of large-radius bends as a bending machine.
Q: Which machine is more cost-effective for high-volume production?
A: Bending machines are more cost-effective for high-volume production due to their faster setup times and automated processes.
Q: What types of materials are best suited for a bending machine?
A: Bending machines are best for thin materials that require smooth, curved shapes and consistent bends.
Q: Is a press brake suitable for curved shapes?
A: While a press brake can handle curved shapes, it is better suited for sharp bends and precision tasks, not large curves.
