Have you ever wondered what makes American and European press brake tooling different? The choice of tooling can drastically affect your metal forming efficiency and bend precision.
In this post, we’ll explore the key differences between American and European tooling systems. You’ll learn how these variations impact the accuracy, cost-effectiveness, and flexibility of your press brake operations.

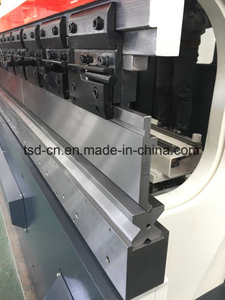

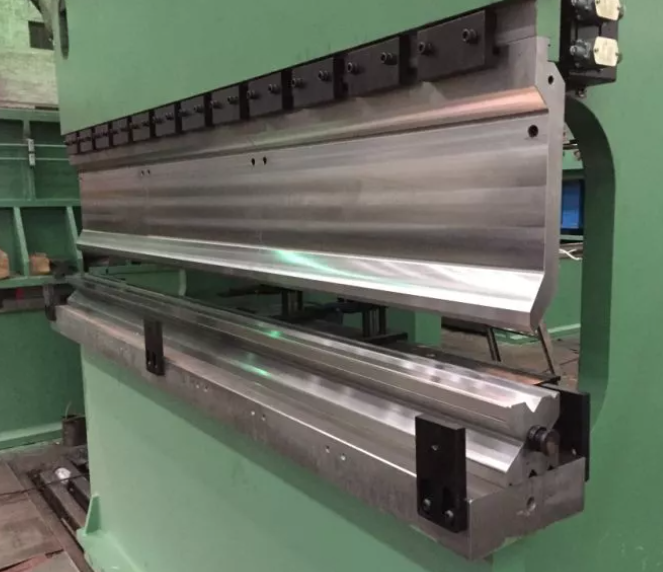

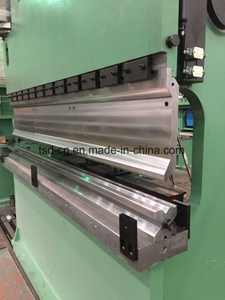

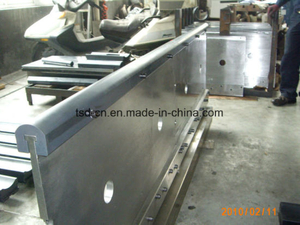

Press brake tooling refers to the tools used in press brakes to bend and shape sheet metal. The main components include punches (the upper tool) and dies (the lower tool). The punch applies force to the metal, while the die provides support and defines the desired shape. Together, they work to bend the material to precise angles and dimensions. The accuracy of this process is critical to achieving high-quality bends.
A press brake is a machine that bends sheet metal using tooling. It applies force to the material through the punch and die system. The punch pushes the metal sheet into the die, forming the desired bend.
● Types of tooling: Different tools are used depending on the application. Standard punches and dies are used for general bending, while specialized tools like acute angle punches or gooseneck punches are used for more complex shapes.
● Functions: The punch applies force to the material, while the die supports and molds the material into the desired shape, ensuring precision and accuracy.
● American Tooling: American press brake tooling is built with a straight line force flow. This design makes it simple to reverse the tool, allowing for easier tool adjustments. The robust design of American tooling is perfect for heavy-duty tasks, as it can withstand high tonnage without deforming.
● European Tooling: European tooling uses an offset holder design where power is transferred through a single surface. This design helps stabilize the tool while ensuring more precise power distribution, making it ideal for high-precision applications.
● American Tooling: Typically made from hardened tool steel, American tooling is designed to be heavier and more durable, handling heavy-duty tasks and thicker materials. This makes it suitable for environments requiring high force and material thickness.
● European Tooling: European tooling is lighter and more precision-focused. While still durable, it is designed for fine-tolerance bending, often used for industries where high accuracy is critical, such as aerospace and automotive.
● American Tooling: American tooling is compatible with older machines. Its simple clamping system makes it easy to retrofit on machines that weren't originally designed for modern tooling styles.
● European Tooling: European tooling, however, is designed for modern CNC press brakes, offering faster tool changes and greater flexibility. Its slimmer design allows for more geometry options, making it ideal for complex or high-volume production.
For instance, our European Style GooseNeck Press Brake Tooling exemplifies the best in European design, offering precision and flexibility for complex bending tasks, while ensuring superior durability and performance. Similarly, for robust and heavy-duty operations, exploring options like our American Style Press Brake Upper Tooling will provide insight into the capabilities of American tooling.
● European-style tooling is known for its higher precision and tighter tolerances. It’s perfect for industries where accuracy is crucial, such as aerospace and automotive. These tools are precision-ground to ensure minimal deviation, providing reliable results across multiple bends.
● American tooling, while reliable, generally offers less precision. It is designed for more heavy-duty tasks but may not meet the same tight tolerance requirements for specialized applications. However, repeatability is excellent in both systems, making them reliable for consistent results when used properly.
● Tool change speed varies significantly between the two systems. European tooling is faster to change, thanks to its quick-change clamping system. This feature is particularly beneficial in high-volume environments, reducing downtime between tool swaps.
● American tooling, while effective, typically has slower tool change times, requiring manual adjustments for clamping and alignment. This makes it less efficient for high-volume production where speed is critical. European tooling’s faster changeover process enhances overall efficiency, especially in industries with high throughput needs.
● Upfront Costs: American tooling tends to have a lower initial cost due to its simpler design and durable construction. This makes it more affordable for shops on a budget or those with limited resources.
● Maintenance and Replacement: In the short term, American tooling is often more cost-effective. However, it may require more frequent maintenance and replacement due to wear from heavy-duty tasks.
● European tooling, on the other hand, requires a higher initial investment but offers lower maintenance costs over time. The precision grinding and quick-change clamping system reduce the need for repairs, saving costs in the long run.
● American Tooling: The durability of American tooling in heavy-duty applications means that while the upfront cost is lower, the tools may last longer in tough environments, reducing the need for frequent replacements.
● European Tooling: Though European tooling requires a larger upfront investment, its precision results in higher operational efficiency, reducing material waste and improving bend accuracy. Over time, these efficiencies offer significant long-term savings by improving production consistency and reducing costs.
When selecting press brake tooling, there are several key factors to consider:
● Material Type: The tooling must be compatible with the type of material you're bending. For example, thicker or harder materials may require heavier-duty tooling.
● Bend Complexity: For complex bends, European tooling might be more appropriate due to its precision and versatility. For simpler bends, American tooling may suffice.
● Production Volume: European tooling is more suited for high-volume production because of its quick-change system. For low to medium production, American tooling may be more cost-effective.
● Machine Compatibility: Ensure that the tooling is compatible with your press brake machine. American tooling is ideal for older machines, while European tooling is designed for modern CNC machines.
Switching between European and American tooling can be challenging but is sometimes necessary for adapting to different production needs.
● Challenges: Transitioning from European to American tooling may require a conversion kit and can lead to height issues with the punch. Combination holders can help, but they may not support the reversal of European tooling.
● Benefits: Moving to European tooling can improve precision and efficiency, especially for high-precision tasks, while American tooling is better for heavy-duty applications and lower initial costs.
To determine which tooling style best suits your operational needs or to speak with a specialist about custom solutions, feel free to contact us today — we’re here to help you make the right choice.
American and European press brake tooling differ in design, precision, and compatibility. American tooling is more robust and cost-effective, while European tooling offers higher precision and faster tool changes.
Understanding these differences helps improve efficiency, accuracy, and cost-effectiveness in metal fabrication. Choose the right tooling style based on material type, production volume, and machine compatibility to optimize performance.
Q: Which press brake tooling style is better for heavy-duty applications?
A: American tooling is better suited for heavy-duty applications due to its robust design and ability to handle thicker materials under high tonnage.
Q: Can I use American tooling on a European press brake machine?
A: Yes, American tooling can be used on a European press brake machine, but conversion kits may be needed for proper compatibility.
Q: How often should press brake tooling be maintained for optimal performance?
A: Press brake tooling should be inspected and maintained regularly, ideally every week or more frequently for high-volume production, to ensure precision and prevent damage.
Q: Is European tooling better for precision bending than American tooling?
A: Yes, European tooling excels in precision bending, offering tighter tolerances and better accuracy for high-precision applications compared to American tooling.
