Have you ever wondered how manufacturers achieve precise bends in sheet metal? Press brake tooling is the unsung hero behind this process. It’s essential for shaping metal sheets into various forms, ensuring accuracy and efficiency.
In this post, we’ll explore what press brake tooling is, why it’s so important in the manufacturing world, and how it impacts production quality and speed. You’ll learn about its role in metal bending, from precision to material handling.
The punch and die system is the core of press brake tooling. The punch, which is the upper tool, presses down on the sheet metal, while the die, located below, provides support and forms the bend. Together, these components shape the metal by forcing it into a desired angle or curve. The punch's shape and the die's cavity determine the final bend's angle and radius.
In addition to the punch and die, other components play a key role in making the bending process smooth and efficient. Die shoes help position and support the punch and die, ensuring accurate alignment during operation. Bending assistance tools like angle measuring tools and positioning blocks ensure high precision, particularly in demanding applications. A quick change system allows operators to quickly swap tooling, which is essential for high-mix, low-volume production environments. These supporting components reduce downtime, enhance tool lifespan, and improve overall production speed.
● Standard Punches: These are the go-to tools for general bending tasks. They are versatile and suitable for many types of bends.
● Acute Angle Punches: Designed for sharp bends, these punches are perfect for creating precise angles, typically under 30°.
● Narrow Punches: Used in tight spaces, narrow punches help with small or intricate bends where regular punches can’t fit.
● Gooseneck Punches: Ideal for deep or complicated bends, these punches allow for more clearance, preventing interference with previously formed sections.

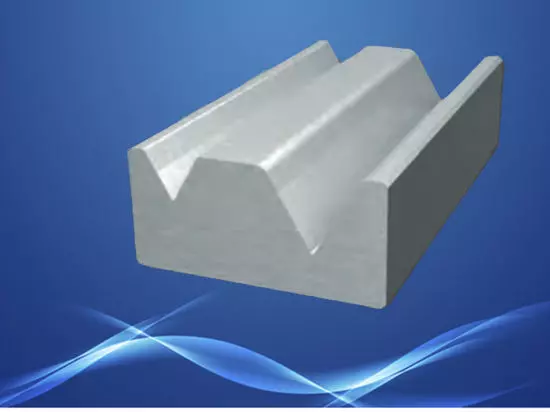

● V Dies: The most commonly used dies, V dies create a standard V-shape bend. The die width plays a key role in determining the bend radius.
● U Dies: These dies are used for creating U-shaped bends or for bending larger parts, offering greater flexibility for deep bends.
● Specialized Dies: Custom dies are used when unique shapes are required, such as Z-bends or other non-standard profiles.
● American Standard Tooling: Popular in North America, this style is designed for versatility and quick setup, making it suitable for general bending operations.
● European Precision Tooling: Known for higher precision, these tools are typically used in industries where accuracy is crucial, such as aerospace or automotive.
● Wila Trumpf Tooling: Used for high-precision bending and high-volume production, this tooling system is perfect for fast changeovers and consistent results.
Press brake tools are typically made from high-strength materials like chromium-molybdenum steel. This alloy is favored for its excellent strength, abrasion resistance, and durability. Chromium-molybdenum steel can handle the immense forces of the press brake without deformation, ensuring precise bends over long periods.
Choosing the right material for tooling is crucial for performance and longevity. The metal type and sheet thickness are key factors in selecting the right material. For example, harder metals like stainless steel require tougher tooling to avoid rapid wear. Thicker sheets demand stronger, more resistant materials to handle the increased pressure without failure. Proper material selection ensures that tools can withstand repeated use, reducing downtime and maintenance costs.
The bending process begins when a metal sheet is positioned between the punch and die. The press brake machine, using CNC or hydraulic systems, moves the punch downward onto the metal sheet. As the punch descends, it forces the sheet into the die, shaping it to the desired angle. CNC systems precisely control the punch’s position, while hydraulic systems provide the necessary force to bend the metal effectively. This combination ensures accurate and efficient bending for a variety of materials and shapes.
For the bending to be precise, the punch and die must work in perfect harmony. Press brakes synchronize these components to ensure accurate bends, especially when working with complex shapes. Proper alignment is crucial to avoid errors. Calibration of the punch and die ensures that they meet at the correct points, preventing inconsistencies in the bend. This synchronization results in uniform, high-quality bends every time, making the process more reliable and consistent.
To keep your press brake tooling in top condition, it’s important to follow regular maintenance practices. Cleaning is a must—remove grease, dirt, and other debris after each use. Lubrication reduces friction and prevents wear. Apply the recommended lubricants to the punch and die surfaces to ensure smooth operation. Sharpening the tooling as needed helps maintain its precision and effectiveness. Regularly inspect the tooling for any signs of damage or wear, and address them immediately to avoid further damage.
Proper storage and handling are key to extending the life of your press brake tooling. Store tools in a clean, dry place to prevent rust and corrosion. Use dedicated storage cabinets to keep them organized and protected from impacts. When handling tooling, avoid dropping or mishandling it, as this can cause deformities. Always handle tools carefully and follow the manufacturer’s recommendations for safe storage and handling. This not only protects the tooling but also ensures optimal performance when used.
Choosing the correct punch and die is crucial for achieving high-quality bends. Start by considering the material type—harder metals like stainless steel require stronger tooling. Next, think about material thickness; thicker materials will need larger die openings and stronger punches. The bend angle also plays a role; for sharp bends, acute angle punches may be necessary. Finally, consider production volume—for high-volume production, investing in durable tooling can reduce downtime and maintenance. The right tooling improves bending accuracy and extends the lifespan of both the machine and tools.
For intricate or complex bending tasks, standard tooling might not be enough. Specialized tools are designed to handle specific challenges like tight radii or deep bends. Tools like gooseneck punches or multiple bend dies are essential for making these types of bends efficiently and accurately. Specialized tools ensure that the metal is formed correctly without damaging the material or tooling. When dealing with non-standard shapes, such as Z-bends or offsets, these specialized tools are necessary to maintain precision and efficiency.
For expert guidance on selecting the right tooling for complex bends, contact us to discover tailored solutions and professional support.
Press brake tooling, like any equipment, experiences wear and tear over time. Signs of wear include dull edges, chipping, or cracks in the punch and die. If you notice uneven bending, it could indicate that the tooling is no longer in good condition. Regular inspections are key to catching these issues early. To address wear, sharpening or replacing worn tooling is necessary. If damage occurs, immediately stop production to prevent further issues. Lubrication can also help reduce wear and friction during operation, keeping the tooling in better shape for longer.
Alignment and calibration problems can lead to inaccurate bends, causing defects in the final product. Common issues include misaligned punches and dies, resulting in uneven bends or incorrect angles. To solve this, regularly check the alignment of the tooling using precision instruments and adjust as needed. Calibration of the press brake ensures the punch and die meet at the correct points during the bending process. It's essential to perform calibration after tool changes or if you notice inconsistencies in the bend quality. Keeping tooling properly aligned and calibrated ensures precision and consistency in every bend.
Press brake tooling is essential in shaping metal sheets, ensuring precision and efficiency in manufacturing. Proper tooling improves production speed and reduces waste.
When selecting tools, consider material, thickness, and bend requirements. Regular maintenance, such as cleaning and lubrication, extends tool life and keeps your press brake running smoothly. Choosing the right tooling for each task ensures high-quality, consistent results.
Q: What are the most common types of press brake tooling?
A: Standard punches, V dies, and gooseneck punches are commonly used in press brake operations for various bending tasks.
Q: How often should press brake tooling be maintained?
A: Regular maintenance, including cleaning, lubrication, and sharpening, is essential to maintain tool effectiveness and longevity.
Q: Can press brake tooling be used for all types of metal?
A: Yes, but it is important to select the appropriate tooling based on the metal's thickness and hardness.
Q: What is the lifespan of press brake tooling?
A: The lifespan varies based on material quality, usage frequency, and maintenance, but high-quality tooling can last for many years.
