Views: 0 Author: Site Editor Publish Time: 2025-05-16 Origin: Site
Press brakes are essential tools in metalworking, used to bend and shape sheet metal with precision. They play a crucial role in industries like automotive, aerospace, and construction, where accuracy is paramount.
But with advancements in technology, two key types have emerged: NC (Numerical Control) and CNC (Computer Numerical Control).
In this post, we’ll explore the differences between NC and CNC press brakes, explaining their functionality, advantages, and which one is right for your needs.

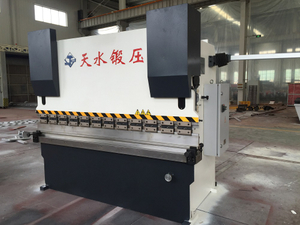

An NC (Numerical Control) press brake is a machine tool used for bending sheet metal with precision. It operates using a simplified numerical control system, which automates certain tasks but still requires manual input for others.
NC press brakes stand out from manual press brakes by using a control system that automates the movement of some components, like the back gauge. While manual press brakes rely completely on operators to adjust settings, the NC system reduces human intervention for specific tasks, improving efficiency.
These machines use a basic numerical control system that processes data inputs, guiding tasks like back gauge movement, ensuring consistent results.
● Numerical Control System: This system automates essential functions, including the back gauge movement, making bending operations more consistent and faster than manual systems.
● Components:
○ Motors: Control the movement of various components, including the back gauge.
○ Hydraulic or Mechanical Systems: Provide power to control bending force.
○ Back Gauge: A positioning tool that ensures accurate placement of the workpiece during bending.
● Faster and More Accurate: Compared to manual press brakes, NC systems increase bending speed and improve accuracy, reducing human error.
● Less Reliance on Skilled Operators: Operators no longer need to make frequent manual adjustments, improving productivity and reducing labor costs.
● Ideal for Simpler, Repetitive Tasks: Perfect for businesses that focus on standard bending operations with little variation in the process.
● Manual Adjustments for Complex Tasks: NC press brakes may still require manual adjustments when working with intricate designs or complicated bending sequences.
● Lower Automation Levels: While the NC system automates some tasks, it doesn't match the high automation and versatility found in CNC press brakes.
A CNC (Computer Numerical Control) press brake is an advanced machine used for precise metal bending. Unlike NC press brakes, CNC press brakes are controlled by a computer, allowing for higher levels of precision and automation in bending operations.
CNC press brakes use a computer-controlled system that automates the bending process. This system interprets programmed data, ensuring consistent and accurate bends without much manual input. Operators only need to set the parameters, and the machine takes care of the rest, making it ideal for complex and high-precision tasks.
● Multi-Axis Control: CNC press brakes can control multiple axes (up to 12), allowing for intricate and precise bending of complex shapes.
● Real-Time Feedback: The system continuously monitors the bending process and adjusts in real-time to ensure that the final product meets the exact specifications.
● Advanced Programming Capabilities: Operators can use graphical interfaces for easier setup and offline programming to design complex bending sequences before running them on the machine.
● High Precision and Accuracy: The computer-controlled system ensures each bend is executed with extreme accuracy, even for complex shapes or materials.
● Increased Productivity: The automation of tasks like tool changes and adjustments leads to faster production cycles, minimizing downtime.
● Ideal for Complex Tasks: CNC press brakes handle varied and intricate bending operations that would be difficult, if not impossible, with manual or NC machines.
● Higher Initial Investment: Due to advanced technology and automation, CNC press brakes come with a higher price tag compared to NC models.
● Complex Operation: The system requires skilled operators who understand both the machine and the programming involved.
● Higher Maintenance Costs: The advanced systems in CNC press brakes mean that maintenance can be more expensive and require specialized knowledge.
Feature | NC Press Brake | CNC Press Brake |
Control Systems | Simpler control system with manual inputs for programming | Advanced computerized control with real-time adjustments and programming of complex tasks |
Level of Automation | Limited automation; requires manual adjustments between operations | High automation; minimal operator intervention required after programming |
Precision and Accuracy | Adequate for simpler tasks; lacks real-time feedback for adjustments | Extremely precise; real-time feedback and automatic error correction for complex geometries and tight tolerances |
Speed Comparison | Slower cycle times due to manual adjustments | Faster cycle times with automated tool changes and adjustments |
Back Gauge Speed | 100 mm/s | Up to 400 mm/s |
● Cost of NC Press Brakes
NC press brakes are generally more affordable compared to CNC models. They are ideal for businesses on a budget and are well-suited for simple, low-volume tasks. Their simpler design and control systems reduce their cost, making them a good option for companies that don’t need the advanced features of CNC systems.
● Cost of CNC Press Brakes
CNC press brakes come with higher upfront costs due to their advanced automation and complex features. However, for large-scale production or complex jobs, the investment is worthwhile. The ability to handle intricate tasks with higher precision and speed justifies the higher initial price for businesses focused on high-volume or complex bending operations.
● Operational Costs for NC
NC press brakes typically have lower operational costs. They are easier to operate and maintain, requiring less specialized labor. However, they may still need more manual labor to set up and adjust the machine between tasks, increasing the time spent on each operation.
● Operational Costs for CNC
Operational costs for CNC press brakes are higher due to the need for software updates and maintenance of the advanced systems. They require specialized technicians for troubleshooting and repairs. Despite these higher costs, automation in CNC machines helps reduce long-term labor costs and increases overall productivity.
● Industries and Tasks
NC press brakes are commonly used in general fabrication, signage production, HVAC manufacturing, and structural steel projects. They are well-suited for tasks that require consistent bending but do not demand high complexity or tight tolerances.
● Ideal for Simple or Low-Volume Production
These machines are perfect for businesses focused on low-volume production or tasks with stable, repetitive requirements. NC press brakes work efficiently when handling straightforward bending tasks, where advanced automation is not necessary.
● Industries and Tasks
CNC press brakes shine in industries such as aerospace, automotive, heavy machinery, and complex architectural metalwork. They are designed to handle intricate, high-precision projects that require sophisticated bending and tight tolerances.
● Best for High-Precision, High-Volume, or Custom Projects
CNC press brakes are ideal for high-volume production environments and custom projects where complex geometries and accuracy are key. The advanced features of CNC systems allow for fast, precise, and automated bending, making them the best choice for demanding manufacturing tasks.
● Production Volume
If your production volume is high, CNC press brakes are the better option. They handle large quantities efficiently due to automation, reducing cycle time and manual labor.
● Precision
CNC press brakes offer superior precision, making them ideal for complex jobs. Their ability to perform real-time adjustments ensures high accuracy, even for intricate shapes or tight tolerances.
● Budget
NC press brakes are more budget-friendly, making them an attractive option for businesses focused on simpler tasks or low-volume production. CNC press brakes, while more expensive, provide advanced features that justify their higher cost for demanding projects.
● Operator Skill
CNC press brakes require less operator involvement and are easier to use, thanks to their automated features and intuitive programming. NC press brakes, on the other hand, demand more skill and manual input from operators.
● Low-Volume, Cost-Sensitive Production
If your production needs are lower in volume and cost is a concern, an NC press brake is the way to go. It’s a practical solution for simpler, less complex tasks.
● Simple Bending Tasks
For businesses that focus on standard, repetitive bending tasks, NC press brakes offer sufficient precision at a more affordable price point.
● High Precision and Speed for Complex Projects
CNC press brakes are the ideal choice if you require high-speed, high-precision bending for complex or large-scale projects. Their automation and accuracy make them perfect for industries like aerospace, automotive, and heavy machinery.
● Flexibility in Production
If your work involves custom projects or changing production needs, CNC press brakes offer the flexibility to adapt to different requirements quickly and efficiently.
The key differences between NC and CNC press brakes lie in automation, precision, cost, and their ideal applications. NC press brakes are more affordable, with limited automation and lower precision. CNC press brakes offer advanced automation, superior precision, and are ideal for complex tasks.
For simpler, low-budget tasks, an NC press brake is a great choice. For high-precision, high-volume, or complex bending projects, a CNC press brake is recommended.
Q: What is the main difference between NC and CNC press brakes?
A: NC press brakes have simpler control systems and require manual adjustments, while CNC press brakes are fully automated with precise control systems for complex tasks.
Q: Can an NC press brake be upgraded to a CNC press brake?
A: Yes, but upgrading is often expensive and may require hardware and software modifications.
Q: What industries commonly use CNC press brakes?
A: CNC press brakes are used in industries like aerospace, automotive, and heavy machinery, where precision and high-volume production are key.
Q: What factors affect the cost of a press brake?
A: Key factors include the level of automation, precision requirements, and machine capabilities.
