Light Pole Shut-Welding Machine (Model 340/12000)

Quantity:

LIGHT POLE SHUT-WELDING MACHINE MODEL : 340/12000

(Submerged Arc Welding and Gas-shielded welding(CO2) Welding both function)

APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 12000MM:12

LIGHT POLE SHUT-WELDING MACHINE MODEL :340/12000, it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
:340/12000
The machine includes the following items:

  1. Long working table with rack for pull dolly

  2. Dolly for pulling pole

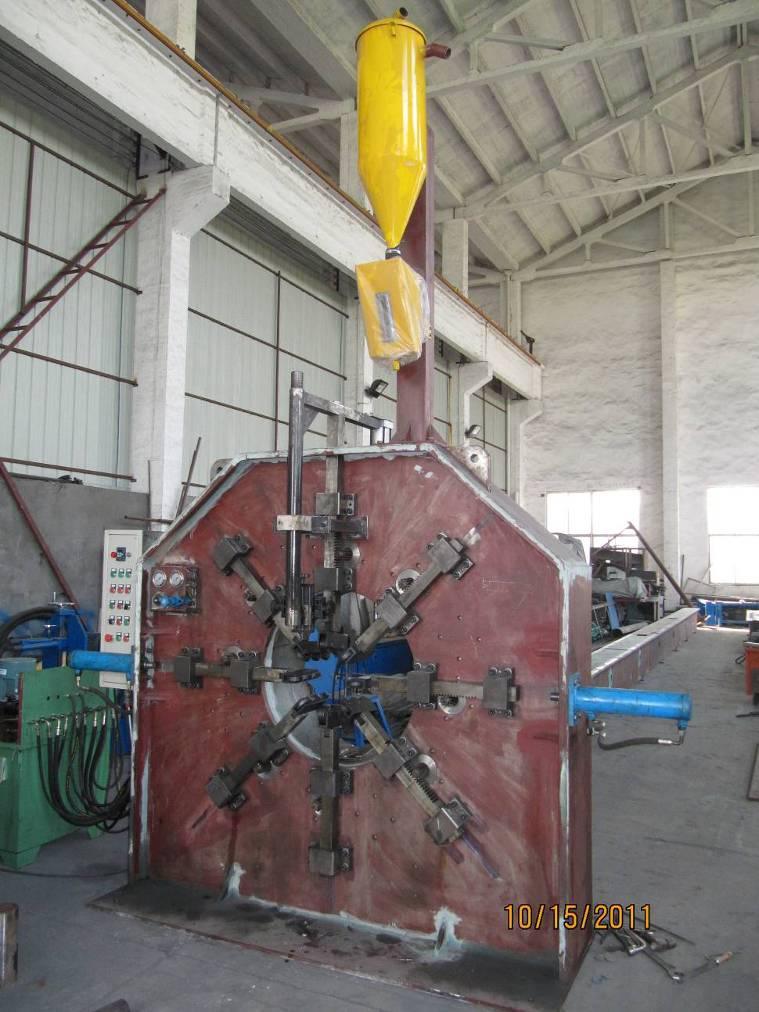

  3. Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole) (3,8,6)

  4. Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including welding wire feeding system. ,

  5. The flux recovering system

  6. back support unit

  7. hydraulic system

TECHNICAL FEATURES
1 Workable Diameter 60-340mm,
2 Workable length   12000 mm
3 DOLLY LENGTH 1500 MM
4 Suitable light pole Thickness Light pole diameter: 60~500mm 2.8~4mm
Light pole diameter: 250~500mm 2.8~6mm
Light pole diameter: 400~500mm 2.8~8mm
5 Power of Motor for Pump 4+2.5 KW double pump
6 Power of Motor for pulling dolly 4 KW, AC speed changeable type.
4 KW.,
7 Welding Machine 630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding
630A.
,,.
Option: Lincoln welding machine
8 Welding wire diameter 1.6~2mm welding wire, according the pole thickness to do selection
9 Working Speed 1.1~2m/min (Note: different thickness speed will be different :,)
10 Gross weight 8000 kg
11 Overall  sizes (mm) 23000x2900x4000 mm ()



Light Pole Shut-Welding Machine (Model 340/12000)


Light Pole Shut-Welding Machine (Model 340/12000)


Light Pole Shut-Welding Machine (Model 340/12000)
