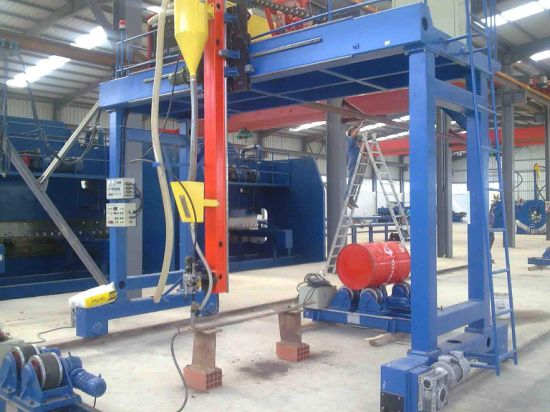

Gantry Type Welding Machine for High mast, model:HWG-1800/4000
Application: final welding process for high mast longitudinal weld-seam
Technical Parameter
| :Gauge | 3000mm(or 4000mm) |
| :rail length | 15000mm (or according requirements) |
| :mast diameter | 300-1800mm |
| :mast length | 12000mm(or according requirements) |
| :wire diameter | 3.2-5mm |
| :wire speed | 250-1200mm/min(,bi-side driving, variable-frequency stepless speed control) |
| :power | motor power:10KW(, not including welding machine power) |
| mm: dimension | ××(2830×4450×3695) |
Component configuration supplied by seller
YDS100-41 travel driving motor :YDS100-4 low speed motor 1 set
SCWS-08-1.1W1welding lifting choose SCWS-08-1.1W deceleration machine 1 set
1,1,11×5 flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m
MZG-10001 submerged arc welding machine 1 set
140mm2, 32(=25+7),Welding ground wire, 140mm2, 32m.
1()arc guidance 1 sets(including welding gun)
7 cable movement pulley
10# ,15,, 10# H beam, 15m, for cable movement pulley
1,1 electrical apparatus box 1 set control box 1 set
24kg30,24Kg rail 30m ( according stroke x2 +6m)
technical documents
()Whole machine foundation drawing
(,,V)machine instructions (electrical appliance diagrams, line hanger drawing, V frame drawing)
Parts should be prepared by buyer
A,.Make base for rail according to supplied information
200x150x16mm, 40,,800mm ,,.200x150x16mm, steel plate,40piece, make holes on both side for ground bolts fixing, 800mm distance,do same leveling.
B,.Supporting frame for gliding wire.
C,V Welding V frame or welding roller stand.
D,(20)lubrication for deceleration machine (machine oil 20#)
E,3×16mm2+1X10 mm235 Power cable 3×16mm2+1X10mm2,35m
