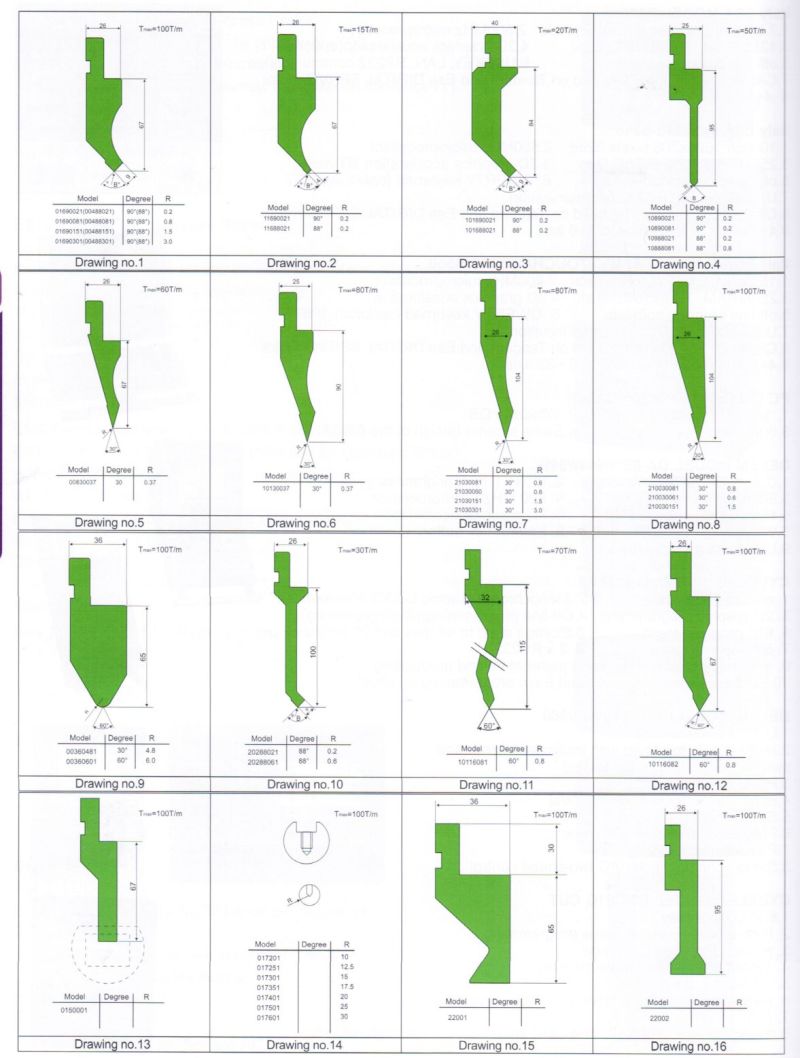

European Style GooseNeck Press Brake Tooling (400--4000kN)

1. Std. Material of top tool: German DIN. Standard 45WCrV7(1.2542) (VDEh);
   Std. Material of bottom tool: German DIN. Standard C105W1(1.1545) (VDEh)
2. HRC 48~52 degree for top tool; HRC 45-48 for bottom tool
3. Connecting mode between top tool and adapter: as customer's requirements
4. Less oxidation and decarbonization, and hardness uniform.
5. Tools heated by special atmosphere oven, and bulk heat treatment.
6. Segmented and Solid tools
7. Tool straightness: 0.01mm/m; Less than 0.05mm on full length
8. Working surface roughness of tool: Less than 3.2
9. No crack, notch and interlayer
10. Joint width of any two segmented top tool or bottom tool: Less than 0.05mm
11. Straightness of combined segmented tools: Less than 0.08mm on full length
12. Parallelism of tool on full length: Less than 0.06mm
13. High precision and high intensity
14. Easy setting and long life
15. Fit for any press brake machines
16. Strict quality management system
17. Small orders accepted.
18. OEM and ODM
19. Standard: ISO9001: 2000; ISO14001: 1994; OHSAS18001: 1999










For any enquiry on special top tools, please state:

Max.nominal pressure
Max.length of working table
Max.width of working table
Max.open height or stroke
Max.steel grade or tensile strength of sheet
Max.thickness of sheet
If there is coated on sheet

Total height H
Dimensions of tongue A-B-C-D
Degrees on the nose F
Measure of flat on E or radius R
Whether the press-brake presses on P or P1
Length and segmented
Connecting type and sizes between top tool and ram




For any enquiry on special bottom tool, please state:
Max.nominal pressure
Max.length of working table
Max.width of working table
Max.open height or stroke
Max.steel grade or tensile strength of sheet
Max.thickness of sheet
If there is coated on sheet


Total height H1,H2 and H3
Dimensions A, B, C, D, E and radius R
Number and position of grooves
Width of grooves V
Degrees on grooves F
Length and segmented
