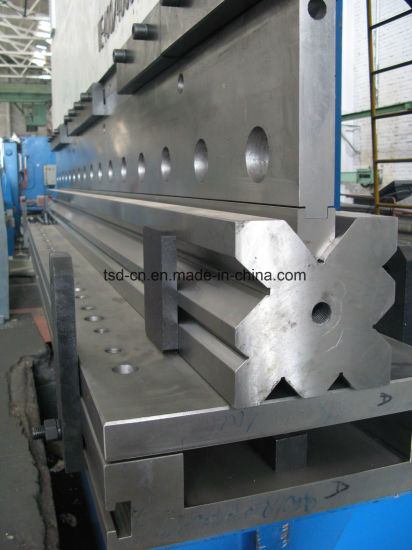

Matrix with Multi Groove for Bending Machine (W=H=110mm)

Matrix with Multi Groove for bending machine

For any enquiry on special matrix, please state:
- Dimensions F x H
- Number and position of grooves
- Width of grooves G
- Degrees on grooves α°
- Length



Features:
1. Std. Material of taper upper tool, taper lower tool and upper tool adapter: 42CrMo4
2. HRC: 55~60 Centigrade degree for upper tool and lower tool
3. Surface of upper tool and lower tool is handled by Vacuum ion nitriding by more than 0.5mm depth
4. Less oxidation and decarbonization, and hardness uniform.
5. Tools heated by special atmosphere oven, and bulk heat treatment.
6. Segmented and Solid tools
7. Tool straightness: 0.01mm/m; Less than 0.05mm on full length
8. Working surface roughness of tool: Less than 3.2
9. No crack, notch and interlayer
10. Joint width of any two segmented upper tool or lower tool: Less than 0.05mm
11. Straightness of combined segmented tools: Less than 0.08mm on full length
12. Parallelism of tool on full length: Less than 0.06mm
13. High precision and high intensity
14. Easy setting and long life
15. Fit for any press brake machines
16. Strict quality management system
17. Small orders accepted.
18. OEM and ODM
19. Standard: ISO9001: 2000; ISO14001: 1994; OHSAS18001: 1999
