Ever wondered how industries achieve precise metal cuts? Enter the guillotine shearing machine, a cornerstone in metal fabrication. These machines have evolved from simple mechanical devices to advanced CNC systems. In this post, you'll learn about their definition, historical background, and crucial role in modern manufacturing.
Understanding how a guillotine shearing machine operates is essential for maximizing its efficiency and precision in cutting metal sheets. This section explores the basic working principle, key components, the role of blades and clamps, and necessary adjustments for different materials.
A guillotine shearing machine cuts metal by applying a shearing force through two blades—a fixed lower blade and a moving upper blade. When activated, the moving blade descends vertically, pressing the sheet metal against the stationary blade. The pressure exceeds the metal’s shear strength, causing it to separate cleanly along the cutting line. This simple yet effective shearing action ensures straight, burr-free cuts suitable for various industrial applications.
Several components work together to ensure the smooth operation of a guillotine metal cutting machine:
Blades: The upper and lower blades are the primary cutting tools. Made from high-strength steel, their sharpness and quality directly influence the cut’s precision and finish.
Hold-Down Clamps: These clamps secure the sheet metal firmly on the cutting bed, preventing any movement during the cutting process. This stability is vital for accuracy.
Back Gauge: This adjustable device positions the metal sheet precisely before cutting, enabling consistent cuts, especially when processing multiple sheets.
Control System: Modern guillotine shearing machines often feature CNC controls, allowing operators to program cutting parameters for repeatability and efficiency.
The blades’ alignment and condition are crucial for achieving clean cuts. The upper blade moves downward with significant force, slicing the metal against the fixed lower blade. Proper blade clearance—the gap between the blades—must be set according to the metal’s thickness to avoid excessive wear or poor-quality cuts.Hold-down clamps play a supportive role by holding the sheet metal steady. Without secure clamping, the metal could shift, resulting in uneven or inaccurate cuts. In hydraulic guillotine shearing machines, these clamps are often hydraulically powered to provide consistent pressure.
Different metals and thicknesses require specific machine settings:
Blade Clearance: Thicker or harder materials need a wider blade clearance to prevent blade damage and ensure smooth cutting.
Blade Angle: Some guillotine shears allow adjustment of the blade angle (rake angle) to optimize cutting performance, especially for tougher metals.
Back Gauge Position: Adjusting the back gauge ensures the metal sheet is positioned for precise length cuts.
Cutting Speed: In hydraulic guillotine shearing machines, cutting speed can be varied to suit material properties, improving cut quality and reducing wear.
By fine-tuning these parameters, operators can handle a wide variety of sheet metals, such as steel, aluminum, brass, and copper, with high accuracy and minimal waste.
Tip: Regularly inspect and adjust blade clearance and hold-down clamp pressure based on the material thickness to maintain clean, precise cuts and extend blade life in your guillotine metal shear operations.
Guillotine shearing machines come in various types, each designed to meet specific cutting needs in metal fabrication. Choosing the right type—whether a mechanical, hydraulic, CNC, or variable rake model—depends on factors like material thickness, production volume, and desired precision.
Mechanical shearing machines operate using a motor connected to gears and a flywheel, which drives the moving blade. These machines are generally more affordable and faster in operation, making them suitable for cutting thinner sheet metal in low to medium production volumes. However, they may lack the power needed for thicker materials and can be noisier during operation. A benchtop guillotine metal shear often falls into this category, ideal for small workshops or light-duty tasks.

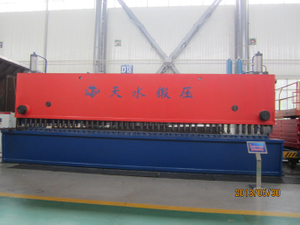

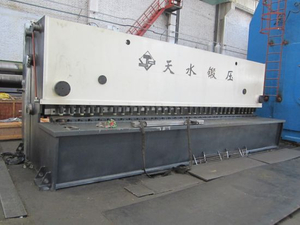

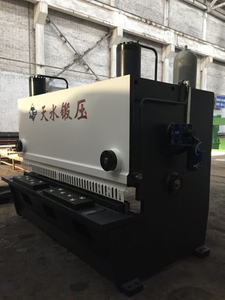

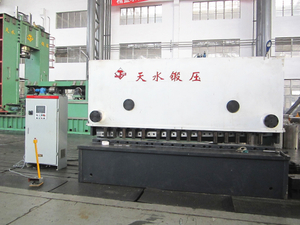

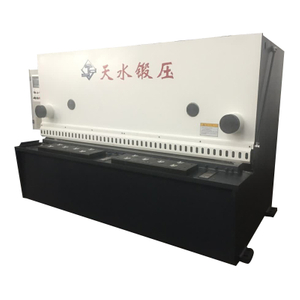

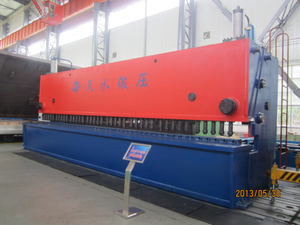

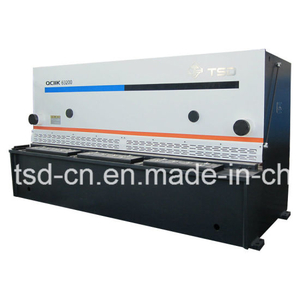

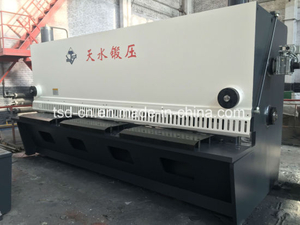

Hydraulic guillotine shearing machines utilize hydraulic cylinders to power the moving blade, delivering greater force and precise control. This makes them perfect for cutting thicker metal sheets and handling high-volume production efficiently. The hydraulic system allows smooth blade movement and adjustable cutting speeds, which reduces wear and improves cut quality. These machines are widely used in heavy industries requiring robust and reliable metal guillotine cutting solutions.

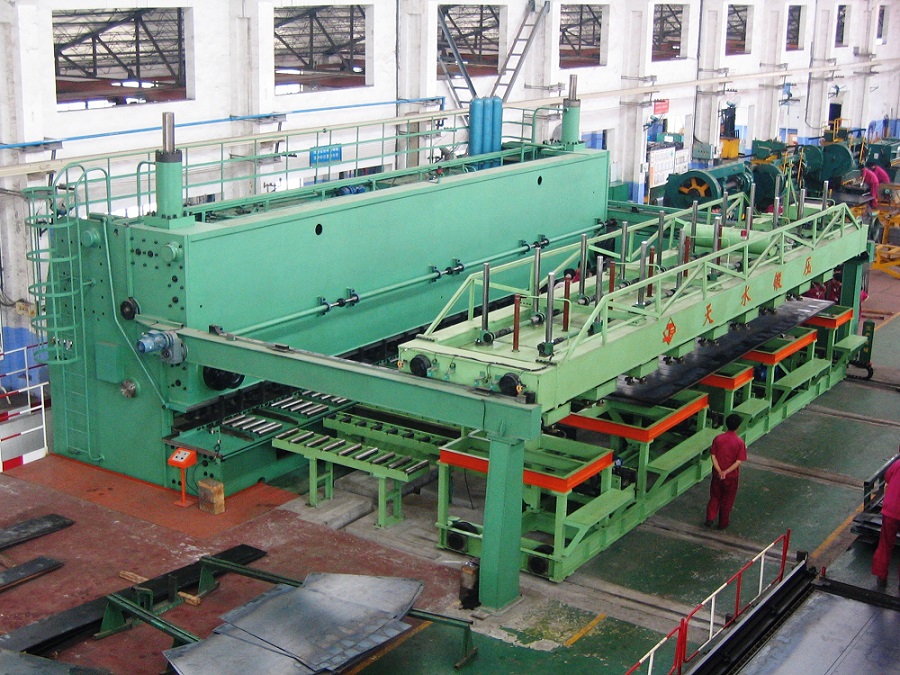

CNC (Computer Numerical Control) shearing machines integrate computerized controls to automate the cutting process. They offer exceptional precision and repeatability, especially useful for complex or repetitive cutting patterns. Operators can program cutting parameters such as blade clearance, back gauge position, and blade angle, optimizing performance and reducing manual errors. CNC guillotine shearing machines are common in advanced manufacturing facilities where accuracy and efficiency are critical.
Variable rake shearing machines allow the adjustment of the blade’s rake angle to optimize cutting performance for different materials and thicknesses. By changing the blade angle, the machine can reduce cutting force and improve blade life, especially when working with tougher metals. This versatility makes variable rake models suitable for applications requiring frequent material changes or thicker sheet metal cutting.
Guillotine shearing machines are essential tools in metal fabrication, offering a range of features that enhance their performance and versatility. Understanding these features helps you select the right metal guillotine machine for your specific needs, whether you're working with thin sheet metal or thicker plates.
One of the primary features to consider is the cutting capacity, which refers to the maximum thickness the machine can cut. Mechanical guillotine shearing machines typically handle sheets up to 6mm thick, while hydraulic guillotine shearing machines can cut metal sheets up to 20mm or more. This higher cutting capacity makes hydraulic guillotine models ideal for heavy-duty applications requiring the cutting of thicker metals.Cutting length is another critical aspect. Guillotine metal cutting machines come with varying cutting lengths, usually ranging from about 1250mm to 4000mm or more. The cutting length you choose depends on the size of the sheet metal you need to process. For example, a benchtop guillotine metal shear often has a shorter cutting length suitable for small-scale jobs, whereas industrial hydraulic guillotine machines accommodate larger sheets.
Precision is a hallmark of guillotine shears. These machines deliver clean, straight cuts with minimal burrs, essential for reducing post-cut finishing work. Standard guillotine shearing machines offer cutting tolerances as tight as 0.1mm, while CNC-controlled models can achieve even finer precision, down to 0.01mm. This accuracy is vital for industries requiring exact dimensions, such as aerospace or automotive manufacturing.
Adjustable blade angles, or rake angles, are a valuable feature in many guillotine shearing machines. By altering the blade angle, the machine can optimize cutting performance for different materials and thicknesses. For tougher metals or thicker sheets, increasing the blade angle reduces the cutting force required and extends blade life. Variable rake shearing machines specifically offer this flexibility, making them versatile for diverse metal types.
The back gauge is a mechanical or electronic device that positions the sheet metal accurately before cutting. It ensures consistent cutting lengths, especially when processing multiple sheets of the same size. The back gauge can be adjusted manually or programmed via CNC systems for automated, repeatable cuts. This feature minimizes material waste and enhances productivity by speeding up setup times.
Tip: Regularly calibrate the back gauge and check blade angle settings to maintain cutting accuracy and extend the lifespan of your hydraulic guillotine or mechanical guillotine metal shear.
Guillotine shearing machines offer several key advantages that make them a preferred choice in metal fabrication and manufacturing industries. Whether you are using a mechanical guillotine shear or a hydraulic guillotine shearing machine, these benefits contribute to enhanced productivity, cost savings, and quality results.
One of the foremost advantages of a guillotine shearing machine is its ability to deliver highly accurate and precise cuts. The design of the shear, with its sharp blades and stable hold-down clamps, ensures clean, straight edges with minimal burrs. This precision is crucial when working with sheet metal that requires exact dimensions, such as in automotive or aerospace manufacturing. Hydraulic guillotine shearing machines, in particular, provide smooth blade movement and controlled pressure, further enhancing cutting accuracy.
Guillotine metal cutting machines are versatile tools capable of handling a wide variety of materials. They can efficiently cut steel, aluminum, brass, copper, and other metals in different thicknesses. This versatility makes them suitable for diverse industries, from construction to metal manufacturing. Additionally, adjustable features like blade angle and clearance allow operators to optimize the machine for different metal types and thicknesses, ensuring consistent quality across materials.
Compared to other metal cutting methods, guillotine shearing machines are relatively cost-effective. They require less maintenance than complex cutting technologies like laser or plasma cutters and have lower operating costs. The ability to produce clean cuts reduces the need for additional finishing work, saving time and labor. For businesses that regularly cut sheet metal, investing in a hydraulic guillotine or mechanical guillotine metal shear can lead to significant long-term savings.
Guillotine shearing machines are designed for straightforward operation. Many models, including benchtop guillotine metal shears, feature simple controls that reduce the learning curve for new operators. Hydraulic guillotine shearing machines often come with automated features that further simplify the cutting process. Maintenance is generally minimal, focusing on blade sharpening, lubrication, and periodic system checks. This ease of use and upkeep minimizes downtime and keeps production running smoothly.
Guillotine shearing machines are indispensable in various industries due to their ability to deliver precise, clean cuts on sheet metal. Whether you use a hydraulic guillotine shearing machine or a mechanical metal guillotine machine, these tools enhance efficiency and accuracy in metal cutting tasks. Below are some key applications where guillotine metal cutting machines play a vital role:
In metal manufacturing, guillotine shearing machines are essential for cutting raw sheet metal into manageable sizes and shapes. These machines handle a variety of metals including steel, aluminum, brass, and copper. The ability to produce straight, burr-free cuts reduces the need for additional finishing, speeding up the production process. Both hydraulic guillotine and mechanical guillotine metal shears are commonly found in fabrication shops, where consistent precision is necessary for quality metal parts.
The automotive sector relies heavily on guillotine shearing machines to cut metal sheets used in car bodies, frames, and other components. The precision offered by these machines ensures parts fit correctly, which is critical for vehicle safety and performance. Hydraulic guillotine shearing machines are especially favored here because they can handle thicker metals and high production volumes without compromising accuracy.
Construction projects often require large quantities of metal sheets cut to specific dimensions for roofing, cladding, and structural components. Guillotine shearing machines provide the speed and precision needed to meet tight project deadlines. Their versatility allows them to cut various sheet metal types used in construction, such as galvanized steel and aluminum. The use of sheet metal guillotine machines helps contractors minimize material waste and maintain consistent quality.
The aerospace industry demands extremely high precision and quality in metal parts. Guillotine shearing machines, particularly CNC and hydraulic guillotine models, are used to cut lightweight metals like aluminum and titanium alloys. These machines ensure that each cut meets stringent tolerances, which is vital for the safety and performance of aircraft components. The clean cuts produced by guillotine metal shears reduce the need for further machining, saving time and costs in aerospace manufacturing.
Proper maintenance and rigorous safety protocols are vital for ensuring the long-term performance and operator protection of guillotine shearing machines. Whether you operate a hydraulic guillotine shearing machine or a benchtop guillotine metal shear, adhering to these guidelines helps maintain precision and prevents costly downtime or accidents.
Blades are the heart of any guillotine metal cutting machine. Over time, they dull due to continuous use, which can lead to rough edges, inaccurate cuts, and increased strain on the machine. Regular sharpening is essential to maintain clean, burr-free cuts and prolong blade life. It’s advisable to inspect blades frequently and sharpen or replace them as soon as any signs of wear or chipping appear. For hydraulic guillotine shearing machines, blade maintenance is even more critical due to the high forces involved.
Smooth operation depends on proper lubrication of all moving parts, including the blade guides, hold-down clamps, and mechanical linkages. Lack of lubrication can cause increased friction, wear, and overheating, which degrade machine components and reduce cutting accuracy. Use manufacturer-recommended lubricants and maintain a regular lubrication schedule. This practice ensures consistent blade movement and reduces the risk of mechanical failure in both mechanical and hydraulic guillotine shears.
For hydraulic guillotine shearing machines, regular inspection of the hydraulic system is crucial. Check hydraulic fluid levels, look for leaks, and monitor the condition of hoses and seals. Hydraulic pressure should be tested periodically to ensure the cutting force remains consistent. Mechanical guillotine shears require checks on gears, flywheels, and motor components for wear or misalignment. Early detection of issues prevents unexpected breakdowns and costly repairs.
Safety is paramount when working with shear guillotine machines. Modern machines often include safety light curtains, two-hand operation controls, emergency stop buttons, and protective guards to minimize operator risk. Operators must be trained to follow established safety protocols, such as keeping hands clear of blades, wearing appropriate personal protective equipment (PPE), and never bypassing safety devices. Regular safety audits and maintenance of safety features help maintain a secure working environment.
Tip: Schedule routine blade inspections, lubrication, and hydraulic system checks while enforcing strict safety protocols to maximize your guillotine metal shear’s performance and protect operators from injury.
Guillotine shearing machines are vital in metal fabrication, offering precision and versatility across various materials. They enhance efficiency and accuracy in cutting tasks, benefiting industries like automotive and aerospace. As manufacturing technology advances, these machines will continue to evolve, providing even greater precision and cost-effectiveness. Tianshui Metalforming offers high-quality guillotine shearing machines, ensuring reliable performance and value in metal cutting operations. Their products are designed to meet diverse industry needs, improving productivity and reducing operational costs.
A: A Guillotine Shearing Machine is a tool used in metal fabrication to cut sheet metal with precision. It operates using two blades—one fixed and one moving—to apply shearing force, creating clean, straight cuts.
A: A Hydraulic Guillotine Shearing Machine uses hydraulic cylinders to move the blade, providing greater force and control for cutting thicker metal sheets. This system allows for smooth blade movement and adjustable cutting speeds.
A: Guillotine Metal Cutting Machines offer high accuracy, versatility across materials, cost-effectiveness, and ease of use. They provide clean cuts with minimal burrs, reducing the need for post-cut finishing.
A: Maintenance involves regular blade sharpening, lubrication of moving parts, and hydraulic system checks for hydraulic models. These practices ensure consistent performance and prevent mechanical failures.
A: Guillotine Shearing Machines are used in metal manufacturing, automotive, construction, and aerospace industries for cutting various metals with precision. They are essential tools for producing high-quality metal parts.
