Guillotine Shear Machine (QC11Y-6X6000)

Availability:
Quantity:
  • QC11Y-6X6000

  • TSD

Hydraulic Guillotine Shear
Model QC11Y-6X6000

Features:
- ASTM283M Gr.D steel to be used for fully welded construction with stress relief
- Knife beam consisted of knife body, double oil cylinders in series, 3 points roll guide rail and clearance adjusting device
- Adjustable cutting angle
- Rolling ball on front supporter and working table for conveniently feeding
- Motorized blade clearance adjustment with displayer
- Returning by nitrogen gas accumulator
- Hold-down clamped hydraulically
- Motorized back gauge
- 6CrW2Si blades
- Lighting alignment cutting device
- Hydraulic manifold valve block
- International standard electrical components
- Electrical cabinet wind cooling
- Movable foot pedestal with emergency stop button

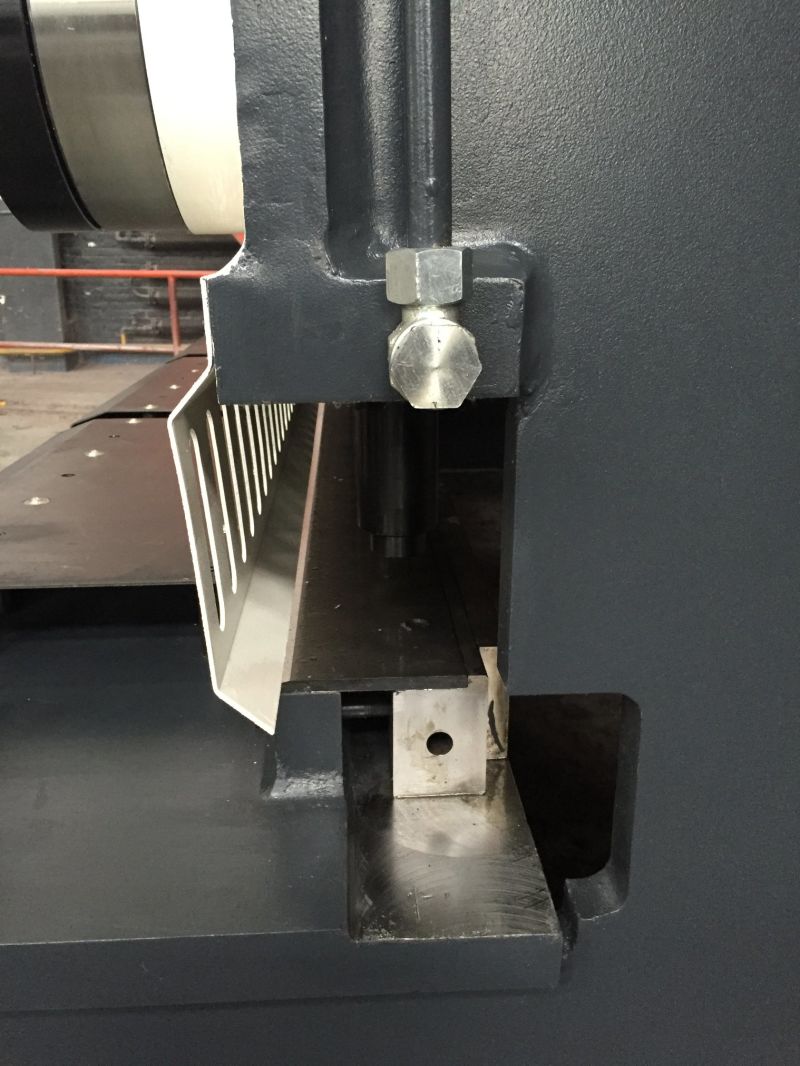

Guillotine Shear Machine (QC11Y-6X4000)


Guillotine Shear Machine (QC11Y-6X4000)

Guillotine Shear Machine (QC11Y-6X4000)

Guillotine Shear Machine (QC11Y-6X4000)


Technical Specifications
Thickness(mm) 6
Width(mm) 6000
Shear angle(°) 0.5-2
Strokes(n/min) ≥8
Back gauge range(mm) 600
Motor power(kw) 11
Overall dim(L*W*H)(mm) 4815×2345×2490
                   Name
Type
Thickness
(mm)
Width
(mm)
Shear angle
(°)
Strokes
(n/min)
Back gauge
range(mm)
Motor power
(kw)
Overall dim
(L*W*H)(mm)
QC11Y-6×4000 6 4000 0.5-2 ≥8 600 11 4815×2345×2490
QC11Y-8×4000 8 4000 0.5-2 ≥7 800 15 4868×2387×2380
QC11Y-8×5000 8 5000 0.5-2 ≥6 800 22 5800×2500×2300
QC11Y-8×6000 8 6000 0.5-2 ≥5 800 22 6700×2560×2300
QC11Y-10×6000 10 6000 0.5-2 ≥6 800 37 7342×3625×3797
QC11Y-10×8000 10 8000 0.5-2 ≥5 800 37 8935×2710×3670
QC11Y-10×12000 10 12000 0.5-2 ≥4 800 45 13115×6740×5580
QC11Y-12×4000 12 4000 0.5-2.5 ≥7 800 22 5044×2342×2622
QC11Y-12×5000 12 5000 0.5-2.5 ≥6 800 22 5655×3570×2841
QC11Y-12×7200 12 7200 0.5-2.5 ≥6 800 45 8000×3910×3750
QC11Y-13×6000 13 6000 0.5-2.5 ≥7 1000 37 7035×2740×3825
QC11Y-13×8000 13 8000 0.5-2.5 ≥6 1000 55 8950×2710×3060
QC11Y-13×9000 13 9000 0.5-2.5 ≥5 1000 55 11450×7310×3760
QC11Y-14×12000 14 12000 0.5-2 ≥4 1000 2×45 13275×5470×6610
QC11Y-16×4000 16 4000 0.5-2.5 ≥7 800 22 4905×3142×2580
QC11Y-16×5000 16 5000 0.5-2.5 ≥8 1000 45 5928×3845×2848
QC11Y-16×6000 16 6000 0.5-2.5 ≥8 1000 45 6952×2540×2820
QC11Y-16×7000 16 7000 0.5-2.5 ≥8 1000 45 8050×2770×3535
QC11Y-16×8000 16 8000 0.5-2.5 ≥4 1000 45 9378×3545×4882
QC11Y-16×9000 16 9000 0.5-2.5 ≥4 1000 55 11110×7860×4982
QC11Y-16×10000 16 10000 0.5-2.5 ≥4 1000 55 11870×7728×5322
QC11Y-16×12000 16 12000 0.5-2.5 ≥4 1000 2×45 13943×4170×6800
QC11Y-20×4000 20 4000  1-3 ≥5 1000 45 5160×3250×3050
QC11Y-20×6200 20 6200  1-3 ≥4 1000 55 7438×2673×3875
QC11Y-20×8200 20 8200  1-3 ≥4 1000 55 9976×7680×4631
QC11Y-25×4000 25 4000  1-3 ≥4 1000 45 5250×3458×3235
QC11Y-25×6200 25 6200  1-3 ≥3 1000 55 7800×5750×3930
QC11Y-25×10000 25 10000  1-3 ≥3 1000 2×45 12050×4250×6700
QC11Y-25×12000 25 12000  1-3 ≥2 1000 2×55 14050×4750×6900
QC11Y-32×4000 32 4000 1.5-3.5 ≥4 1000 2×45 5250×2646×3412
QC11Y-35×4000 35 4000 1.5-3.5 ≥5 1000 2×55 10336×3900×4092

Standard configuration:
- Chinese famous brand's main electrical components
- Motor: Xi'an SIMO, http://www.simo.com.cn
- Hydraulic system: Beijing Huade, China
- Seal rings of main cylinders: NOK, Japan
- 380 Volts/3 Phases/50Hz


Options
- Whole length blade
- Cr12MoV/H13K material blade for stainless steel cutting
- Pneumatic back supporter
- Extended side arm


Packing: Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in             container

After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
   management system in our company and on our products.
  All products before ex-works have been strictly tested and are in conformity with technical agreement and
  standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
   could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
   to guide the installation, testing and training the operators from 7 days to 45 days after the machine
   reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
  (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
   included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
   firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
   free to contact the Seller.
   If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
   service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
   which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
   long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
   failure description, clear pictures and videos, if possible.
   Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
   B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
   service at lowest cost.
