Views: 0 Author: Site Editor Publish Time: 2025-10-21 Origin: Site
Cold forming presses are key to shaping metal and other materials without heat, ensuring precision in manufacturing. These machines are used across industries like automotive and aerospace.
In this article, we’ll discuss how to choose the best cold forming press based on tonnage, application, and features. By the end, you'll know how to select the right press for your needs.
Cold forming presses are machines that shape metal or other materials at room temperature, as opposed to hot forming processes which require the application of heat. In cold forming, the material is deformed under high pressure to create parts with precise shapes, sizes, and properties. The process involves squeezing the material between a die and a punch, forcing it into the desired shape.
Cold forming is preferred in situations where material properties need to be enhanced, or when the precision of the parts is critical. Unlike hot forming, cold forming presses offer improved material strength due to the work-hardening effects that occur during the process.
The advantages of cold forming presses are manifold. These presses offer significant benefits over traditional machining methods, particularly when it comes to:
● Material Savings: Cold forming minimizes material waste as it reshapes the material without cutting away excess, unlike traditional machining methods that often result in scrap metal.
● Improved Material Properties: The cold working process enhances the material’s strength, durability, and surface finish, making it ideal for high-performance parts.
● Complex Shapes: Cold forming presses can create complex and intricate shapes that would be challenging to achieve with traditional machining, allowing for greater design flexibility.
● Cost-Effective Production: Since there’s no need for heat treatment, cold forming presses reduce energy consumption and operational costs.
A typical cold forming press comprises several key components that determine its functionality and performance:
● Hydraulic Systems: Hydraulic presses use hydraulic fluid to transmit force, providing precise control over the forming process.
● Die Sets: Die sets are crucial in shaping the material to the desired form. The alignment and maintenance of die sets are critical to ensuring high-quality outputs.
● Frames and Slides: The press’s frame provides stability, while the slides ensure smooth movement of the punch and die, ensuring accuracy during the forming process.
● Control Systems: Modern cold forming presses incorporate advanced control systems that regulate parameters such as pressure, speed, and stroke length for optimal performance.
When selecting a cold forming press, several factors must be carefully evaluated to ensure you get the best fit for your production needs.
The first step in choosing the right cold forming press is understanding your specific production needs. What materials do you need to form? What shapes do you need to produce? Matching the press’s features to your application requirements will help you select the most suitable machine.
● Material Types: Some cold forming presses are better suited for specific materials, such as steel, aluminum, or high-strength alloys. It’s essential to ensure the press you select can handle the materials you plan to use.
● Shape Complexity: If your parts require complex shapes or intricate designs, you will need a press that offers high precision and flexibility.
The tonnage of a cold forming press refers to the amount of force it can exert on the material. The required tonnage depends on the type of material being used, the shape to be formed, and the dimensions of the part.
● How Tonnage Affects Cost: The higher the tonnage, the more powerful the press, and typically, the higher the cost. However, selecting a press with too low a tonnage can compromise part quality and production efficiency.
● Capacity vs. Application: Understanding the required tonnage for your application is essential. Too much tonnage can lead to unnecessary wear and tear, while too little can result in insufficient deformation, leading to defects.
Another critical factor to consider is the speed and efficiency of the cold forming press. Faster cycle times can significantly increase productivity and reduce lead times.
● Increased Throughput: Cold forming presses designed for rapid cycle times can greatly enhance production capacity, making them ideal for high-volume manufacturing environments.
● Optimizing Workflows: Choosing a press that integrates well with your existing production line will help optimize workflows and reduce bottlenecks.
Factor | Considerations | Impact on Choice |
Application Requirements | What materials and shapes will be formed? | Determines which press type (hydraulic, mechanical, etc.) suits best |
Tonnage & Capacity | What amount of force is needed for your production needs? | Higher tonnage presses are suited for larger, more complex jobs |
Speed & Efficiency | How fast do you need to complete cycles? | Faster cycle speeds improve production rates |
Energy Efficiency | How much energy will the press consume during operation? | Energy-efficient presses help reduce long-term operating costs |
Understanding the various types of cold forming presses available can help you choose the right one for your business.
Hydraulic presses are highly versatile and widely used in cold forming processes. They rely on hydraulic cylinders to generate the force required to shape the material. Hydraulic presses are known for their precision, allowing for the accurate shaping of complex parts. They are also ideal for handling heavy-duty materials.
Mechanical presses, which use a flywheel and crankshaft mechanism, are faster than hydraulic presses and are best suited for high-speed operations. These presses are less flexible than hydraulic presses but are ideal for high-volume, simple forming tasks like stamping and blanking.
Servo presses combine the benefits of hydraulic and mechanical presses. They offer the precision of hydraulic presses with the speed and efficiency of mechanical presses. Servo presses are particularly useful for applications that require high precision and energy efficiency.
C-frame presses are compact and offer three-sided access, making them ideal for smaller parts and limited space environments. H-frame presses, on the other hand, are larger and offer more substantial force, making them suitable for heavy-duty applications like deep drawing and forming larger components.

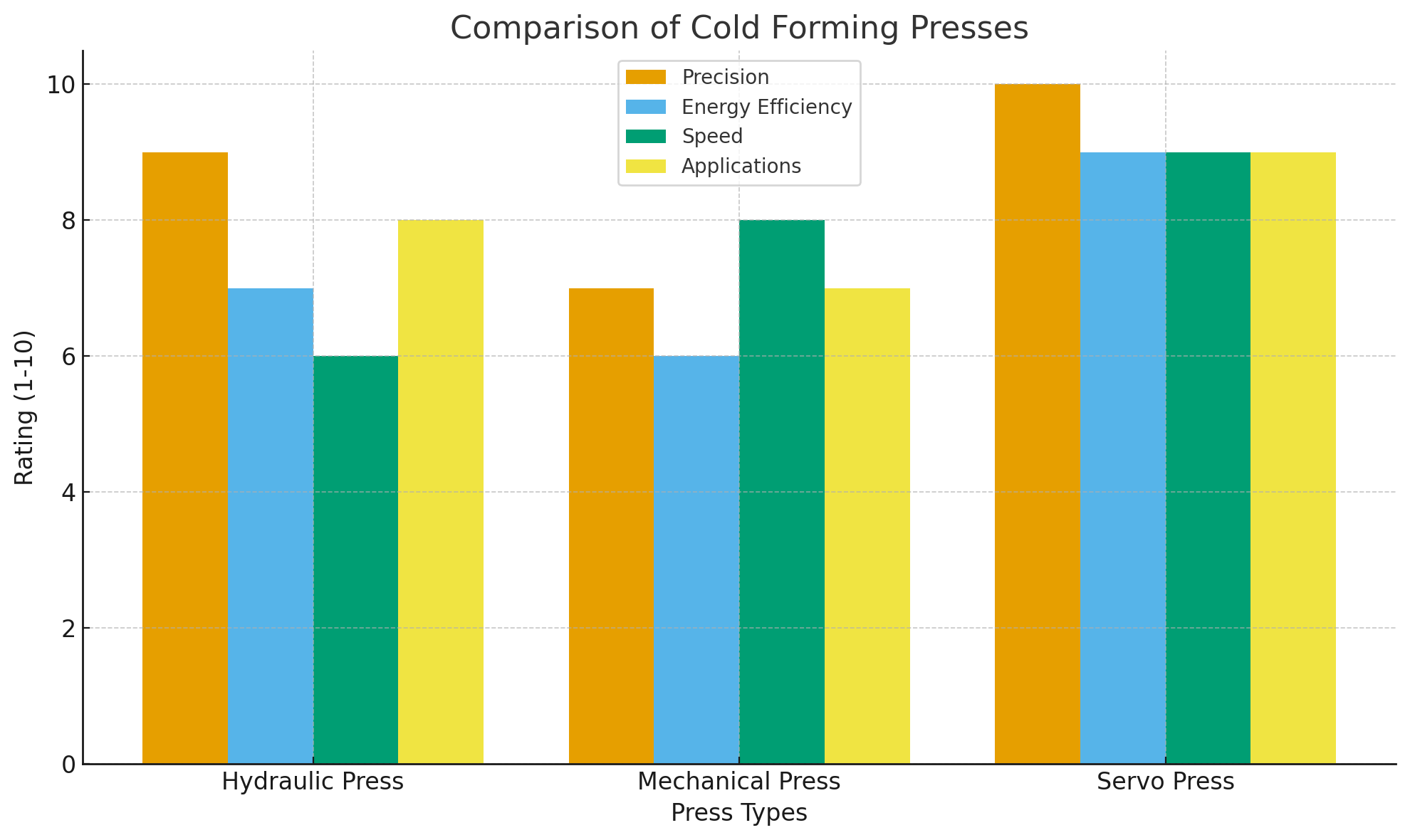

Type of Press | Key Features | Best Use Case |
Hydraulic Press | Uses fluid pressure for force, precise control | Ideal for complex shapes and high precision applications |
Mechanical Press | Uses flywheel energy storage for quick force delivery | Best for high-speed, repetitive tasks |
Servo Press | Uses electric motors and ball screws for precision | Suitable for energy-efficient, highly controlled shaping |
C-Frame Press | Small, compact, three-sided access | Perfect for small parts and light-duty applications |
H-Frame Press | Large, symmetrical design, powerful | Ideal for heavy-duty and high-force applications |
To maximize the performance of your cold forming press, consider additional features that enhance functionality and safety.
Modern cold forming presses come with automation features that can improve efficiency and consistency in production. Look for presses with programmable logic controllers (PLC) that allow for precise control over the forming process.
● Programmable Logic Controllers (PLC): PLCs help automate operations, making it easier to achieve consistent results.
● Remote Monitoring: With remote monitoring, operators can track the performance of the press and make adjustments from a distance, reducing downtime and improving productivity.
Safety is a top priority in any manufacturing environment. Ensure the press you choose is equipped with safety features like emergency stops, safety guards, and protective enclosures to minimize the risk of accidents.
Energy-efficient presses are not only better for the environment, but they also reduce operational costs. Look for presses with energy-saving features like variable speed drives and low-energy consumption hydraulics.
The total cost of ownership (TCO) includes not only the initial purchase price but also long-term operational costs such as energy consumption, maintenance, and downtime.
The upfront cost of a cold forming press varies depending on the type, tonnage, and features. It’s essential to choose a press that balances cost and performance to meet your needs without overspending.
Consider the power consumption of the press, as well as the ongoing maintenance and repair costs. Cold forming presses that are energy-efficient and require less maintenance can provide better value in the long run.
Choose a press that is easy to maintain, with readily available spare parts and a manufacturer that offers good after-sales support. Regular maintenance is crucial to ensuring the press operates at peak performance.
● Warranty and After-Sales Support: Look for a press that comes with a comprehensive warranty and robust after-sales support to minimize downtime and repair costs.
When choosing a cold forming press, it’s important to match the press’s capabilities to your production needs.
Consider factors like production volume, the complexity of parts, and the material being used. Selecting a press with the right tonnage and features for your specific application is crucial.
Some cold forming presses offer customization options such as adjustable die sets, modular control systems, and adaptable tooling. These features can enhance the press’s flexibility, making it suitable for a wider range of applications.
Look for a press that can grow with your business. It’s important to choose a machine that can handle increased production volumes or accommodate new materials and processes as your needs evolve.
Choosing a reliable manufacturer is essential to ensure the press meets your needs and continues to perform optimally over time. Look for a vendor that offers strong customer support, technical assistance, and training services.
Cold forming presses are used in a wide range of industries, including automotive, aerospace, and electronics. Some common applications include:
● Automotive Industry: Manufacturing parts like engine components, chassis, and fasteners.
● Aerospace Industry: Creating lightweight, high-strength parts for aircraft and spacecraft.
● Consumer Goods: Producing parts for household appliances and electronics.
● Industrial Components: Manufacturing components like bearings, bushings, and gears.
● Medical and Electronics: Creating precision parts for medical devices and electronic assemblies.
Industry | Common Applications | Press Type |
Automotive | Engine components, chassis, fasteners | Hydraulic, Servo, Mechanical |
Aerospace | Aircraft structures, engine components | Hydraulic, Servo |
Consumer Goods | Kitchen appliances, electronics, tools | Mechanical, Hydraulic |
Medical Devices | Precision parts for medical equipment | Hydraulic, Servo |
Industrial Parts | Bearings, bushings, gears, heavy machinery components | Hydraulic, Mechanical |
Choosing the right cold forming press is essential for improving productivity and reducing costs. Key factors like application, tonnage, and speed must be considered. Companies like TSD provide reliable cold forming presses that ensure precision, cost-effectiveness, and meet diverse industrial needs. Always assess your production goals and consult experienced vendors to make the best choice.
A: Cold forming presses are machines used to shape materials at room temperature, improving material strength and precision without heat. These presses are essential in industries like automotive and aerospace.
A: Hydraulic presses use fluid pressure to generate force, offering high precision and flexibility in cold forming. They are ideal for complex shapes and materials requiring accurate shaping.
A: Consider the application requirements, tonnage, speed, and energy efficiency. Match the press to your production needs for optimal results.
A: Hydraulic presses provide more control and versatility, ideal for detailed shapes, while mechanical presses offer higher speed and efficiency for simpler tasks.
A: Higher tonnage cold forming presses are typically more expensive due to their ability to handle larger materials and provide more force.
