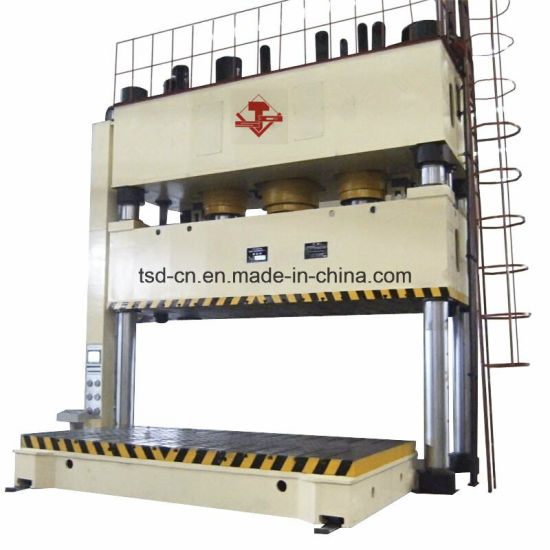

Single Action Hydraulic Press with Movable Table

(Y27-500)

Characteristics:
- Two structure for choice: Straight-side structure or Four column type
- Machine structure with good rigidity,high accuracy and anti-deflection capacity
- Technological process has general process action and drawing action
- Adjusting, manual, semi-automatic control modes, and preset stroke and preset pressure forming
processes.
- cushion actions including with cushion, without cushion and knock-out cushion three cycles
- PLC control
- Cartridge valve integrated unit with reliable action and few leaking

Options
- Moving table
- Proportional regulation for slide speed and force
- Proportional regulation for cushion force
- Cutting dampening system
- Light curtain safety device
- Oil heating/cooling unit
- Displacement sensor
- Die exchange cart
- Industry touching screen monitor
- Upper ejecting device (hydraulic or mechanical type)
- Floating guide-way and rolling bracket for die exchange
- Power socket
- Die protection unit
- Working area lighting
- Quick die clamping device

No.	Name		Unit	Value
1	Nominal force		KN	500
2	Force of hydraulic cushion		KN	1600
3	Max.working pressure of hydraulic		Mpa	25
4	Max.opening height		mm	1500
5	Max.stroke of slide block		mm	900
6	Stroke of hydraulic cushion		mm	300
7	Speed of slide block	Descent	mm/s	100
		Pressing	mm/s	4~10
		Return	mm/s	50
8	Table size	Left-Right	mm	1400
8	Table size	Front-Back	mm	1400
9	Hydraulic cushion size	Left-Right	mm	900
9	Hydraulic cushion size	Front-Back	mm	900
10	Height from working table to floor		mm	300
11	Total motor power		kw	30

No.	Technical parameters		Unit	Y27-63	Y27-100	Y27-160	Y27-200	Y27-315	Y27-400	Y27-500	Y27-630	Y27-1000	Y27-1800
1	Nominal pressure		kN	630	1000	1600	2000	3150	4000	5000	6300	10000	18000
2	Knock-out cylinder/cushion force		kN	400	400	400	630	1000	1000	1600	1600	3000	6000
3	Max.hydraulic force		Mpa	25	25	25	25	25	25	25	25	25	25
4	Slide stroke		mm	500	600	700	700	800	800	900	900	900	1800
5	Max.stroke of cushion		mm	200	250	250	250	300	300	300	300	400	500
6	Daylight		mm	770	1000	1000	1000	1250	1250	1500	1500	1500	2400
7	Speed of slide	Descent	mm/s	180	220	100	100	100	100	100	100	120	120
		Pressing		20-25	10-14	10-15	10-15	8-12	8-10	10-15	10-12	8-10	8-10
		Returning		100	120	70	80	60	55	70	60	80	80
8	Effective area of working table	F-B	mm	550	650	960	920	1150	1400	1400	1800	1500	3000
8	Effective area of working table	L-R	mm	500	600	800	900	1200	1400	1400	1500	1250	2500
9	Dimensions of cushion	L-R	mm	450	550	800	760	900	1000	1100	1400	700	2200
9	Dimensions of cushion	F-B	mm	400	450	550	660	700	1000	1000	1000	700	1800
10	Motor power		kW	7.5	7.5	11	22	22	22	45	45	74	120
