Hydraulic Press for Steel Safe Deposit Box (Y32-630)

Availability:
Quantity:
  • Y32-630

  • TSD

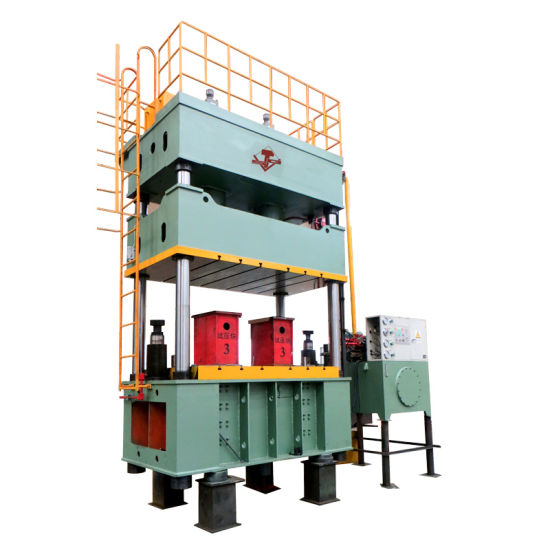

Hydraulic Press for Steel Safe Box (Y32-630)



Features:


Mechanical system
Three beams-four columns & Double oil cylinders structure
Fully welding machine frame with stress relief
Four guiding columns and filling lubricating
Standard or customized T slotting on table
Cylinder body & piston made of 45# steel forging part
Hard chromed and polished piston and four guide columns with high precision and bearing unbalance loading

Hydraulic system
Integrated two way cartridge valve with large flowing capacity and small flow resistance
Double circuit safety valve at the lower chamber of oil cylinder to prevent from overloading and accidental lower running
Flexible joint connection for shake-proof and leak-proof capacity
Liquid level indicator in oil tank
Filling fluid case designed on the upper place of upper cross beam

Electrical system
Inching/manual/semi automatic(single cycle) three working modes.
Constant pressure forming or setting stroke forming for choice.
Stroke communicating device can adjust stroke within range at will.
Emergency stop and Emergency returning buttons
Safer bimanualness
Protecting switch of stroke limit position

Hydraulic Press for Steel Safe Box (Y32-630)



Main configurations:
Oil cylinder - TSD,China
High pressure plunger pump -Qidong,China
Integrated valve group -Taifeng,Shandong,China
Button - Schneider
Breaker, AC contactor, Intermediate relay, proximity switch -Schnider or CHINT

Spare parts:
O seal rings, one set

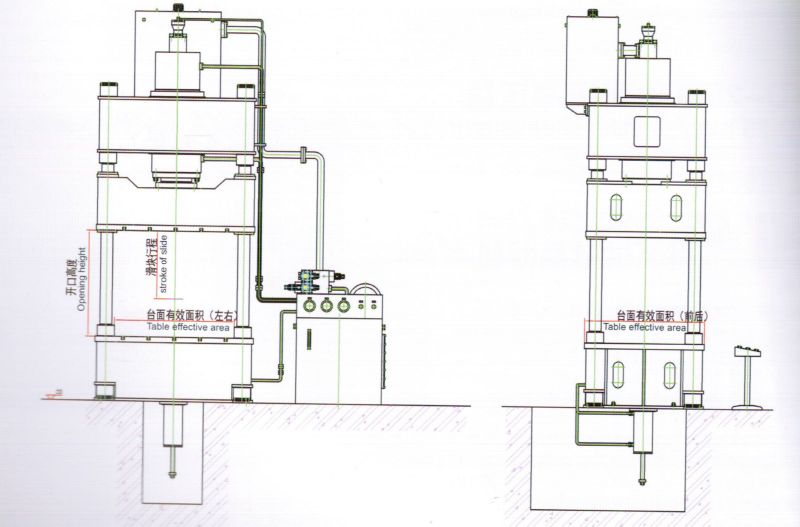

Main technical parameters

No.NameUnitParameter
1Nominal pressurekN6300
2Max.working pressure of fluidMpa25
3Max.opening heightmm1500
4Stroke of slide blockmm900
5Slide block speedEmpty downmm/s100
Workingmm/s5-12
Returningmm/s60
6Effective area of
working table
Left-rightmm1600
Front-backmm1600
7Height from working table to floormm500
8T slotting
standard
9Motor powerkW44




After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this
   quality management system in our company and on our products.
   All products before ex-works have been strictly tested and are in conformity with technical agreement and
   standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer
   warranty could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
   to guide the installation, testing and training the operators from 7 days to 45 days after the machine
   reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
  (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
   included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
   firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
   free to contact the Seller.
   If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-
   sale-service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the
   former, which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and
   the long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply
   full failure description, clear pictures and videos, if possible.
   Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
   B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
   service at lowest cost.
