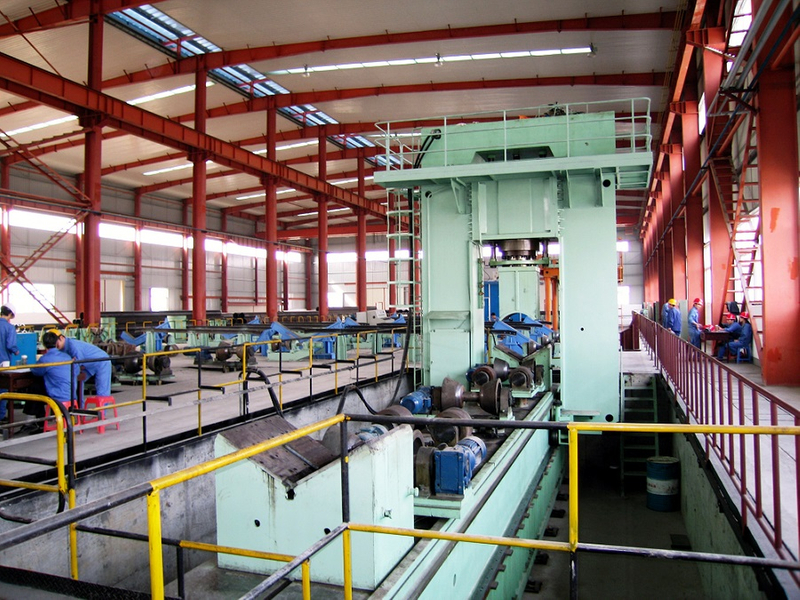

Hydraulic Press for Straightening Steel Pipe Steel Bar (TDW98Y-500/400*1000)

  • TDW98Y-500/400*6000
  • TSD

Hydraulic press for straightening steel pipe steel bar

- Y-Z axis movement motorised
- For straightening steel pipe, round bar
- Straightening in full length and 360 degree
- Inch, single and holding pressure
- V supporting seats and liftable rotating rollers on working table
- Pressure monometer
- Easy to operate
- Stop any positon you want
- Two Individual hydraulic systems separately for main oil cylinder and knock-out cylinder
- Fast down, slow down, pressing, pressure-holding, unloading, fast returning functions for main
  oil cylinder
- Overloading protection for hydraulic system
- Control panel on gantry frame or pendant arm

 Main Specifications

Name of technical dataSpecification
Nominal pressure5000 kN
Max. bar diameterФ400 mm
Bar length6000 mm
Working table availability width1000 mm
Working table availability length6000 mm
Working table total length8000 mm
Distance between lower surface of piston
and working table surface
1500 mm
Longitudinally moving range of
movable cross beam
6000 mm
Fast down speed of pressing head60 mm/s
Slow down speed of pressing head6.4 mm/s
Pressing speed1.3-2.6 mm/s
Returning speed of pressing head67 mm/s
Max. stroke of pressing head down moving305 mm
Total power of motor62 kW
Overall dimensions(L×W×H)10000×5200×6200
Weight55,000 kg

 Main configurations:

ReducerChinese famous brand
Main hydraulic valveBosch Rexroth
Oil cooling deviceChinese famous brand
Hydraulic dynamic sealing componentNOK,PARKER,
Or ormon, Mitsubishi, Japan
Oil pump of main machineQidong
Main electrical componentSIEMENS or SCHNEIDER
Motor of main oil pumpChinese famous brand

Scope of supply
Main machine:                       1 set
upper die:                              1 piece
V-shaped lower die:              2 pieces
Conveying lifting roll:            5 groups
Rotating roll:                          2 groups

Main hydraulic system:          1 set

Auxiliary hydraulic system:    1 set
Electrical system:                   1 set
Seal rings:                              1set

1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
    management system in our company and on our products.
   All products before ex-works have been strictly tested and are in conformity with technical agreement and
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
    could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
    to guide the installation, testing and training the operators from 7 days to 45 days after the machine
    reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
   (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
    included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
    firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
    free to contact the Seller.
    If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
    which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
    long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
    failure description, clear pictures and videos, if possible.
    Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
    B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
    service at lowest cost.

Quality First, Customer First

TSD's R&D center is awarded as National R&D Center.We're pleased to get your Inquiry and we will come back to as soon as possible.
