WH67Y-200/2500
TSD

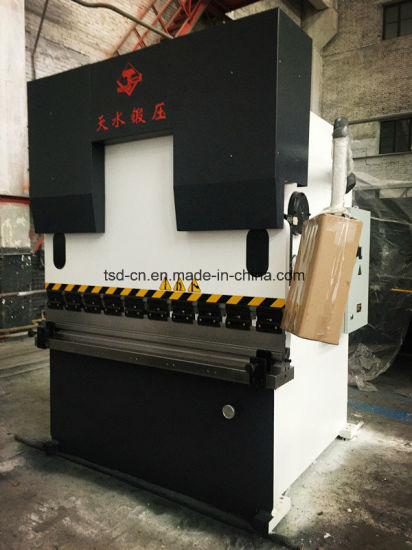

Torsion Bar Press Brake
Model WH67Y-200/2500
Features:
- ASTM283M Gr.D steel to be used for fully welded construction
- Double cylinders control ram moving upward and downward.
- Right-and-left balance achieved by torsion Bar synchronization.
- Upper tool fast clamps and Multi-V die
- Standard front supports arms.
- Electrical cabinet wind cooling
- Standard back-gauge, with manual adjustable height finger
- Interlocked Safe Side doors.
Technical Data:
| Nominal pressure | 2000 KN |
| Length of table | 2500 mm |
| Distance between uprights | 2100 mm |
| Throat | 400 mm |
| Stroke of ram | 200 mm |
| Max. open height | 470 mm |
| Back gauge stroke | 600 mm (X axis controlled by E21 controller) |
| Speed: | Approaching 100mm/s Working 10mm/s Returning 100mm/s |
| Main motor power | 15 kw |
| Oil tank capacity | 270 litre |
| Overall dim.(L*W*H): | 2602*2380*2760mm |
| Weight | 10040 kg |
| Type Name | WH67Y- 63/1250 63/2500 63/3200 | WH67Y- 100/2500 100/3200 100/4000 | WH67Y- 160/2500 160/3200 160/4000 | WH67Y- 200/2500 200/3200 200/4000 | WH67Y- 250/3200 250/4000 250/5000 | |
| Nominal pressure(KN) | 630 | 1000 | 1600 | 2000 | 2500 | |
| Length of table (mm) | 1250 2500 3200 | 2500 3200 4000 | 2500 3200 4000 | 2500 3200 4000 | 3200 4000 5000 | |
| Distance between uprights (mm) | 900 2100 2700 | 2100 2700 3300 | 2100 2690 3300 | 2100 2700 3300 | 2700 3300 4300 | |
| Throat depth (mm) | 250 | 350 | 350 | 400 | 400 | |
| Ram stroke(mm) | 130 | 160 | 200 | 200 | 250 | |
| Max. Open height (mm) | 390 | 420 | 470 | 470 | 520 | |
| Back gauge stroke (mm) | 500 | 600 | 600 | 600 | 600 | |
| Approaching speed (mm/s) | 100 | 100 | 80 | 100 | 100 | |
| working speed (mm/s) | 10 | 10 | 10 | 10 | 10 | |
| Returning speed (mm/s) | 90 | 80 | 100 | 100 | 120 | |
| Main motor power(KW) | 5.5 | 7.5 | 11 | 15 | 18.5 | |
| Overall dimensions (L×W×H) (mm) | Length(mm) | 1320 2600 3230 | 2564 3264 4064 | 2564 3264 4064 | 2602 3264 4064 | 3260 4060 5060 |
| Width(mm) | 1710 | 1920 | 2005 | 2380 | 2390 | |
| Height(mm) | 2275 | 2500 | 2740 | 2760 2760 2780 | 3200 | |
