Sheet Metal Ironworker with Advanced Technology (Q35Y-16)

Quantity:
  • Q35Y-16
  • TSD
Steelworker
model:Q35Y-16

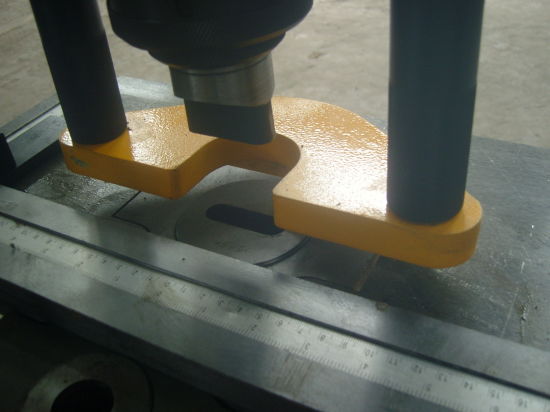

16mm Punching Thickness Ironworker (Q35Y-16)

Features:
- Hydraulic driving system
- Two foot switches
- Separated operation available
- Easy tool change

- Punch and die Φ25mm
- Punch holder
- Square bar cutting blade
- Round bar cutting blade
- Angle shear
- Notching blade
-Working light
- Centeral lubricating system
- C-Spanner
- 5 working stations


Options:
- Joist blades
- Channel blades
- Electrical back gauge






16mm Punching Thickness Ironworker (Q35Y-16)




Main specifications:

Model Q35Y-16
Pressure 55T
Max cutting thickness(mm) 16
Plate strength(N/mm2) ≤450
Cutting angle
Shearing size of one stroke 16*250  8*400
Ram stroke(mm) 80
Number of stroke(cpm) 8
Throat depth(mm) 300
Punching thickness(mm) 16
Max punching diameter(mm) 25
Power of main motor(kw) 5.5
Overall dimensions
L*W*H(mm)
1640*730*1770
Weight of machine(kg) 1600

A special order for the joist ,T-bar and channel moulds needed.
16mm Punching Thickness Ironworker (Q35Y-16)


Main specifications

Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30
Pressure                          (T) 60 90 120 160
Max cutting thickness     (mm) 16 20 25 30
Plate strength       (N/mm2) ≤450 ≤450 ≤450 ≤450
Cutting angle                  (°)
Shearing size of one stroke 16*250 20*330 25*330 30*355
                                     (mm) 8*400 10*480 16*660 20*600
Ram stroke                (mm) 80 80 80 80
Number of stroke    (cpm) 820 820 820 820
Throat depth              (mm) 300 355 400 600
Punching thickness (mm) 16 20 25 26
Max punching diameter (mm) 25 30 35 38
Power of main motor (kw) 5.5 7.5 7.5 11
Overall dimensions 1640*730*1770 1860*800*1900 2355*960*2090 2680*1040*2300
L*W*H(mm)
Weight of machine     (kg) 1700 2300 4400 6800


After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
   management system in our company and on our products.
  All products before ex-works have been strictly tested and are in conformity with technical agreement and
  standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
   could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
   to guide the installation, testing and training the operators from 7 days to 45 days after the machine
   reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
  (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
   included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
   firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
   free to contact the Seller.
   If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
   service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
   which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
   long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
   failure description, clear pictures and videos, if possible.
   Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
   B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
   service at lowest cost.

Quality First, Customer First

TSD's R&D center is awarded as National R&D Center.We're pleased to get your Inquiry and we will come back to as soon as possible.
