Hydraulic Cutting Ironworker (Q34Y-110)

Quantity:
  • Q34Y-110
  • TSD

Hydraulic Cutting Ironworker
model Q34Y-110


Featurs:
-One ram structure driven by one oil cylinder

-Six standard working positions

-Cutting manually or in foot pedestal

-Punching hole, positioning, pressing for sheet, Cutting round steel & square steel

-Cutting sheet, flat steel & angle steel. Slotting and Notching for sheet and angle steel

-Punching hole and positioning for angle steel

-With optional tool, cutting channel steel, Cutting round pipe & Bending tube are available

-Quick changing tools and Automatic holding plate.

-Interlocking & protecting

-High manufacturing precision. Simple, high efficient & flexible operations

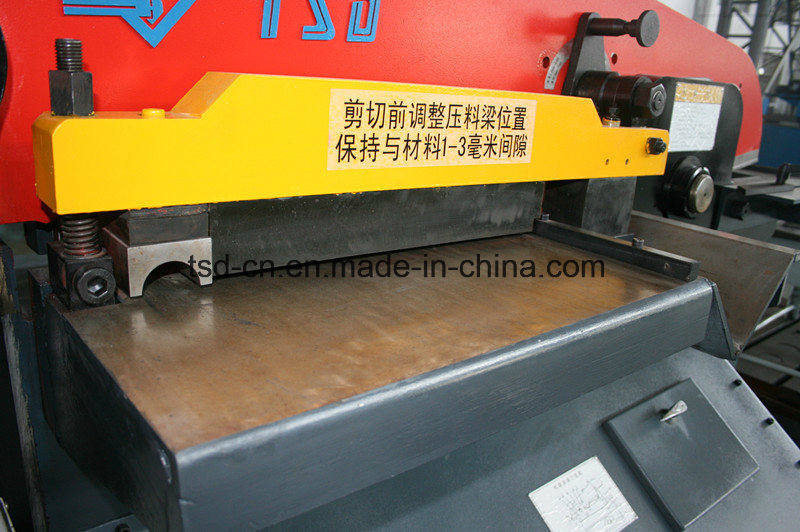

Metal Iron Worker (Q34Y-110t)

Metal Iron Worker (Q34Y-110t)

Metal Iron Worker (Q34Y-110t)

Metal Iron Worker (Q34Y-110t)

Metal Iron Worker (Q34Y-110t)








Main technical parameters

Punching
Position
ItemValueUnitStandard/Optional tools
Size of working table536*370mm
Max. pressing force1100KN
Max.cutting plate size
(Thickness*width)
25*300
20*450
12*500
mmCutting 20*450mm sheet available with machine
Not removing the blade for round(angle) steel,
Max.cutting plate width is 400 mm
Max.cutting angle steel160*160*16mmAvailable with machine
Max.punching hole force1100KN
Max.punching hole sizeФ38*25mmPunching Ф12*16mm hole available with machine
Cutting Round steel or
Square steel
Round steel:
Ф12~Ф50
mmCuttingФ12~Ф30mm round steel available with machine

Square steel:
12~35

Cutting square steel, the blade is optional;
CuttingФ30~Ф50mm round steel,
the lower blade is optional.
Cutting channel steel50~200mmOption
Sheet bending100*300mmOption
Notching
Position
Size of working table
(left-right*front-back)
485*510mm
Nominal force850KN
Max.notching size
(width*depth*thickness)
100*150*10mmAvailable with machine
motor power15kW
Overall dimensions
(L*W*H)
2300*1690*1087mm
Weight2800kg



Packing :Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container
