Four Columns Double Action Hydraulic Drawing Press for Forging (Y28-150/200)

Share to:

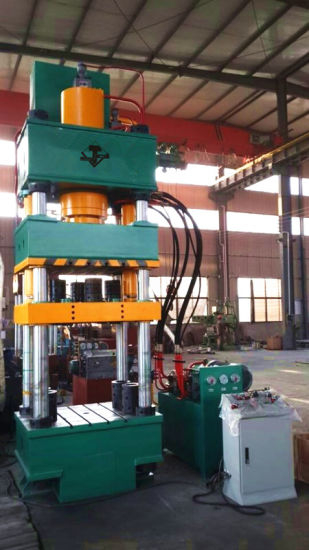

Four Columns Double Action Hydraulic Drawing Press for Forging (Y28-150/200)

Availability:

Quantity:



Inquire

Model:
Y28-150/200
Brand:
TSD

Four Columns Double Action Hydraulic Drawing Press for Forging
Y28-150/200

Characteristics:
- Straight-side structure with double slide, the slide with 8-flod guide way features
- Double slide can mechanical lock for single action
- Various way of rolling bolster: Front, lateral, T-travel type
- Full digital control of pressure parameters, pressure closed loop control
- Blank holder slide pressure subsection control
- Mould parameter storage and the failure diagnosis
- Full arrange of safety device and safety control system
- High efficiency of cooling device, suitable for continuous production
- No-pressure mould alignment, convenient for aligning mould

Options
- Proportional regulation for slide speed and cushion force
- Cushion pressure subsection control
- Light curtain safety device
- Oil heating/cooling unit
- Die protection unit
- Displacement sensor
- Industry touching screen monitor
- Upper ejecting device (hydraulic or mechanical type)
- Floating guide-way and rolling bracker for die exchange
- Working area lighting
- Power socket
- Non-recycling lubrication system controlled by computer
- Quick die clamping device

Main Technical Data

Name				Unit	Y28-25	Y28-80/120		Y28-100/180		Y28-150/200			Y28-100/350		Y28-200/315		Y28-250/400
Nominal force				KN	250	1200		1800		2000			3500		3150		4000
Drawing force				KN		800		1000		1500			1000				2500
Blank-holding				KN				800		500			2500		1000		1500
Cushion /ejector force				KN		400		315		500			630		630		1000
Knockout force				KN		50		315
Stroke of drawing slide				mm	220	410		710		570			750		800		800
Stroke of blank hold slide				mm				350					600		350		350
Cushion/ejector Stroke				mm		1801				250			300		300		300
Drawing sliden area			L-R	mm	400	500		630		790			1200				1340
			F-B	mm	420	560		630		920			1200				540
Blank holder slide area			L-R	mm				380					1200		800		1400
			F-B	mm				380					1200		600		600
Cushion area			L-R	mm		510
			F-B	mm		450
Table area			L-R	mm	640	500		630		790			1200		1200		1200
			F-B	mm	420	600		630		920			1200		1200		1200
Daylight of drawing slide				mm		660		1460		870			1600		1500		1500
Daylight of blank holder slide				mm
Speed of drawing slide			Descent	mm/s	100	800		≥280		160			52		≥100		≥100
			Pressing	mm/s		20		40-10		14-25			5-17		10		10
			Return	mm/s	50	120		130/200		180			100		50 (slow)100(fast)		siow50/fast100
Speed of drawing slide		Descent		mm/s				100							≥100		≥100
		Pressing		mm/s				50							10		10
		Return		mm/s											50 (slow)100(fast)		slow50/fast100
Overall dimensions	L-R			mm	1860		2040	2300				2310		4400		4150		4950
	F-B			mm	750		720	900				950		2500		1300		1500
	Height			mm	1650		2860				4250			overground 4242 underground 1100		4850		overground 5290 underground 800
Total power of the motor				KW	4		15		22		22			24		44		44

Name				Unit	Y28-200/500	Y28-400/630		Y28-500/800		Y28-630/1030			Y28-800/1300(A)		Y28-1200/2000		Y28-1600/2400
Nominal force				KN	5000	6300		8000		10300			13000		20000		24000
Drawing force				KN		4000		5000		6300			8000		12000		16000
Blank-holding				KN	2000	2300		3000		4000			5000		8000		8000
cushion /ejector force				KN	1000	1000		1600		2500			2500		5000		5000
Knockout force				KN						500					200= 2025
Stroke of drawing slide				mm	900	1100		1300		1300			1400/1300		1500		1500
Stroke of blank hold slide				mm	500	1000		1200		1200			1400/1200		1200		1200
Cushion/ejector Stroke				mm	350	300		300		350			650/350		400		400
Drawing sliden area			L-R	mm	1200	1600		2200		2500			2700		3800		2800
			F-B	mm	1400	1000		1700		1500			1600		1900		1600
Blank holder slide area			L-R	mm	450	2600		3200		3200			2500/2400		4500		3500
			F-B	mm		1800		2400		2200			2200		2500		2200
Cushion area			L-R	mm		2150		2000					1500/2500		3600		2365
			F-B	mm		1250		1500		1420			1500/1500		1850		1450
Table area			L-R	mm	1200	2600		3200		3200			2500/4000		4500		3500
			F-B	mm	1400	1800		2400		2200			2200		2500		2200
Daylight of drawing slide				mm	1500	1800		1800		2200			2300/2000		2100		2200
Daylight of blank holder slide				mm		1700		1800		2200			2300/2000		1800		1900
Speed of drawing slide			Descent	mm/s	150	>250		250		>270			200/300		350		350
			Pressing	mm/s	10	12-30		12-25		10-30			11-20/12-30		20-40		15-33
			Return	mm/s	90	200		120		250			110/250		330		330
Speed of drawing slide		Descent		mm/s	50	>250		250		>270			300		350		350
		Pressing		mm/s	22	12-40		16-40		15-40			15-32		40		37
		Return		mm/s	35	200		150		250			250		330		330
Overall dimensions	L-R			mm	4070		5400	5800				6200		6800/6500		6400
	F-B			mm	1648		3600	3800				4000		4860/5100		3500
	Height			mm	overground 5300 underground2100		9300		7365		10375			6910/8200		overground8813 underground4200		overground9100 underground4400
Total power of the motor				KW	48		110		133.7		155			108/180		320		330
Remarks											Stretching the slider cutting			Stretching the slider cutting				Stretching the slider cutting

After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
management system in our company and on our products.
All products before ex-works have been strictly tested and are in conformity with technical agreement and
standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
to guide the installation, testing and training the operators from 7 days to 45 days after the machine
reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
(USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
free to contact the Seller.
If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
which is helpful for customers' special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
failure description, clear pictures and videos, if possible.
Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
service at lowest cost.
