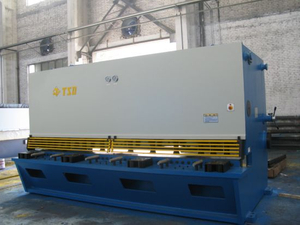

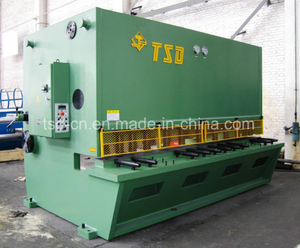

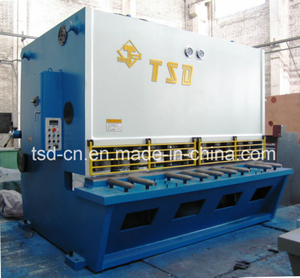

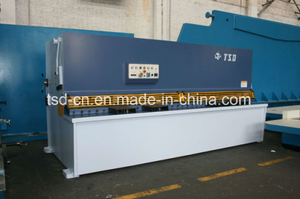

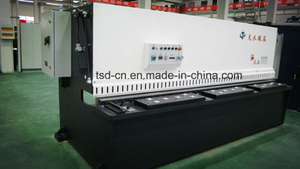

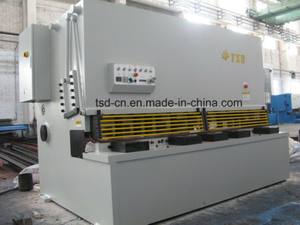

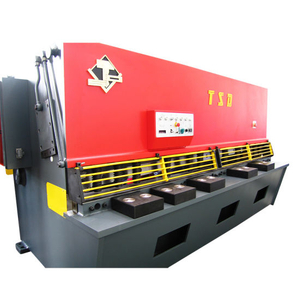

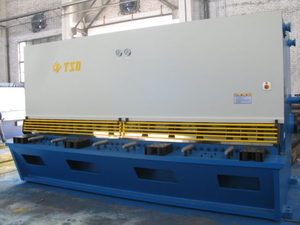

The swing beam shearing machine is the answer. This innovative machine plays a crucial role in metal processing, offering unparalleled precision and efficiency. In this post, you'll learn what a swing beam shearing machine is, its significance in metal processing, and the key features and benefits it offers.

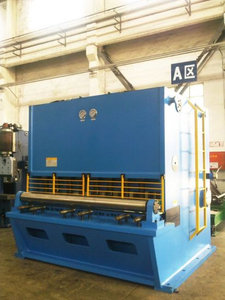

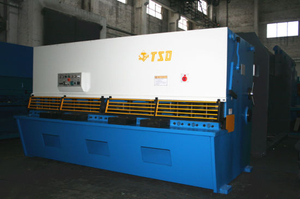

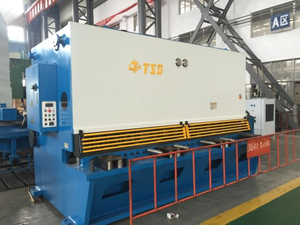

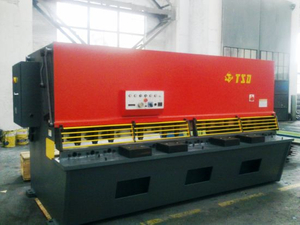

Understanding how a swing beam shearing machine operates is key to appreciating its efficiency and precision in metal cutting. This machine uses a distinctive swinging blade mechanism powered by hydraulic or mechanical systems to shear metal sheets cleanly and accurately.
The core principle involves an upper blade mounted on a pivot that swings in an arc to cut the metal against a fixed lower blade. Unlike traditional straight-up-and-down shearing, the swinging motion reduces stress and distortion on the material. Hydraulic swing beam shearing machines use hydraulic cylinders to generate the force needed to drive this swinging action smoothly and powerfully.
Upper Blade (Swinging Blade): Mounted on a hinged arm, this blade swings down in a controlled arc to perform the cut. It is made from hardened steel or carbide for durability.
Lower Blade: Fixed securely on the machine’s base, it provides a stable cutting edge against which the upper blade presses.
Swinging Mechanism: A pivot point at the rear of the upper blade arm allows the swinging motion.
Hydraulic System: Consists of pumps, cylinders, valves, and hoses that power the swinging blade with precise force.
Back Gauge: An adjustable stop that positions the metal sheet for accurate, repeatable cuts.
Hold-Downs: Clamps that keep the sheet metal firmly in place during cutting.
Control Panel: Allows operators to set cutting parameters like blade clearance, back gauge position, and cutting speed.
Material Placement: The operator places the metal sheet on the machine bed, aligning it against the back gauge.
Parameter Setting: Using the control panel, the operator adjusts blade clearance, back gauge position, and cutting speed according to the material thickness and desired cut length.
Blade Activation: The hydraulic system powers the swinging upper blade, which moves down in an arc towards the fixed lower blade.
Cutting Action: The upper blade shears the metal sheet cleanly against the lower blade, minimizing distortion and producing a smooth edge.
Material Removal: The cut piece falls away or is removed manually or by mechanical means.
Repeat Cuts: For multiple cuts, the back gauge automatically repositions the sheet, maintaining consistent cut lengths and accuracy.
This method allows the swing beam shear to handle thicker and tougher materials more efficiently than some other shearing machines. The hydraulic swing beam shear’s smooth, controlled motion ensures clean cuts and reduces wear on blades, extending their service life.
Tip: Regularly check and maintain the hydraulic system and blade sharpness to ensure consistent cutting precision and prolong the lifespan of your swing beam shearing machine.
Swing beam shearing machines, especially the hydraulic swing beam shear variants, offer significant benefits that make them indispensable in metal processing industries. Their unique design and operation deliver high performance, precision, and safety, which are essential for modern manufacturing demands.
One of the standout advantages of a swing beam shearing machine is its exceptional cutting accuracy. The swinging upper blade moves in a controlled arc, applying uniform force across the metal sheet. This reduces distortion and results in cleaner, straighter cuts compared to some other shearing methods. The precise back gauge positioning and adjustable blade clearance further enhance repeatability and accuracy, making these machines ideal for applications where exact dimensions are critical.
Swing beam shears are highly versatile. They can handle a wide range of materials including steel plates, stainless steel, aluminum, and other metals of varying thicknesses. The hydraulic swing beam shearing machine, in particular, excels at cutting thicker and tougher materials due to its powerful hydraulic drive. This adaptability means it suits many industries, from automotive and aerospace to construction and HVAC, where different metal types and thicknesses are common.
Thanks to their simple yet robust construction, swing beam shearing machines require relatively low maintenance. The swinging mechanism and hydraulic components are designed for durability and long-term use. Regular upkeep mainly involves blade sharpening, hydraulic fluid checks, and ensuring the back gauge and hold-downs function correctly. This low maintenance demand reduces downtime and operational costs, boosting productivity.
Modern swing beam shearing machines incorporate numerous safety features to protect operators. These include emergency stop buttons, optical protection devices, and sturdy hold-down clamps that secure the metal sheet during cutting. Hydraulic swing beam shears often come with sensors that detect unsafe conditions and immediately halt operation. Such safety measures are vital in preventing accidents and ensuring compliance with industrial safety standards.
Tip: To maximize the advantages of your swing beam shear, schedule regular blade inspections and hydraulic system maintenance to maintain cutting precision and machine longevity.
Swing beam shearing machines, including the hydraulic swing beam shear variants, serve a broad range of industries due to their precision and versatility. Their ability to cut various metal types and thicknesses efficiently makes them indispensable in many metal processing environments.
In sheet metal fabrication, the swing beam shearing machine plays a key role. It efficiently cuts large metal sheets into smaller, manageable sizes or specific shapes needed for further processing. The clean, straight cuts produced by the swinging blade reduce the need for additional finishing. This precision is critical when fabricating components for machinery, appliances, or structural elements, ensuring parts fit together perfectly.
The automotive and aerospace industries demand high accuracy and repeatability in metal cutting. Hydraulic swing beam shearing machines meet these requirements by providing clean cuts with minimal distortion. They handle a variety of metals, including steel and aluminum alloys, which are common in vehicle and aircraft manufacturing. These machines help produce body panels, chassis parts, and structural components, contributing to lightweight and strong assemblies.
Construction projects and HVAC (Heating, Ventilation, and Air Conditioning) systems often require metal sheets and plates cut to precise dimensions. Swing beam shears are ideal for cutting steel and aluminum sheets used in ductwork, framing, and cladding. Their robust construction allows them to handle thicker materials typical in construction, while their precision ensures components fit correctly, speeding up installation and reducing waste.
Steel processing plants use swing beam shearing machines to cut large steel plates into smaller sections for various applications. The hydraulic swing beam shear's powerful and smooth cutting action handles thick steel plates efficiently. This makes it suitable for heavy manufacturing sectors, including shipbuilding, heavy machinery, and infrastructure projects where large steel sections must be prepared quickly and accurately.
Tip: When selecting a swing beam shearing machine for your application, consider the typical material types and thicknesses you work with to ensure optimal machine performance and cutting quality.
When deciding between a swing beam shearing machine and a guillotine shear, understanding their differences is crucial. The swing beam shear features an upper blade that swings in an arc, while the guillotine shear’s upper blade moves straight up and down. This key distinction affects how each machine handles cutting tasks.Blade Cutting Edges:
| Machine Type | Upper Blade Edges | Lower Blade Edges |
| Swing Beam Shear | 2 | 4 |
| Guillotine Shear | 4 | 4 |
The guillotine shear has more cutting edges on the upper blade, allowing it to be flipped and reused multiple times before sharpening. The swing beam shear typically has fewer edges but offers other advantages.Cutting Method and Motion:
Swing Beam Shear: The upper blade swings in an arc, applying a shearing force gradually along the metal sheet.
Guillotine Shear: The upper blade moves vertically, cutting the sheet with a straight downward motion.
This arc motion in the swing beam shear reduces stress and distortion in thicker materials, making it ideal for heavy-duty cutting.Blade Gap Adjustment:
Guillotine shears often feature motorized blade gap adjustments, allowing precise, programmable control.
Swing beam shears usually rely on manual crank adjustments for blade clearance.
Cutting Angle Adjustment:
Guillotine shears allow step-by-step cutting angle adjustments via the controller.
Swing beam shears typically do not have cutting angle adjustment capabilities.
Loading Sheets. Please try again after it's finished.
Selecting between a hydraulic swing beam shearing machine and a guillotine shear depends on your specific production requirements:
Choose a Swing Beam Shear if:
You work with thick or heavy metal plates.
You need a machine that minimizes material distortion.
Your application involves steel fabrication, construction, or shipbuilding.
You prefer a machine with lower maintenance demands.
Choose a Guillotine Shear if:
Your focus is on fast, high-volume cutting of thin to medium metal sheets.
Precision and speed are top priorities.
You require automated blade gap and cutting angle adjustments.
Your work involves automotive or aerospace sheet metal fabrication.
Understanding these differences helps you invest in the right shearing machine tailored to your metal processing needs.
Tip: Evaluate your typical material thickness and production volume carefully to select between a swing beam shear and guillotine shear for optimal efficiency and cost-effectiveness.
Modern swing beam shearing machines, including the hydraulic swing beam shearing machine models, have evolved significantly to meet the demands of precision, efficiency, and safety in metal processing. These advancements make them an indispensable tool across various industries.
Swing beam shearing machines come in both hydraulic and mechanical variants. The hydraulic swing beam shear uses hydraulic cylinders to power the swinging blade, delivering smooth, consistent force. This system allows for easy adjustment of cutting pressure, making it suitable for thicker and tougher materials. Hydraulic models typically offer better control, less vibration, and more precise cuts.Mechanical swing beam shearing machines rely on cams, gears, or flywheels to drive the swinging blade. While they are generally simpler and less expensive, mechanical models may not provide the same level of cutting force or precision as hydraulic ones. However, they still serve well in applications where moderate cutting power suffices.
Modern swing beam shearing machines often feature advanced CNC control systems that automate key functions. These include:
Programmable back gauge positioning: Allows for precise, repeatable cuts by automatically adjusting the metal sheet position.
Multi-step cutting programs: Operators can set multiple cutting lengths and sequences to streamline batch production.
Real-time display: Shows back gauge position and shearing count for easy monitoring.
Blade clearance adjustment: Some models provide motorized or semi-automatic blade gap control to optimize cutting quality and blade life.
Automation reduces operator fatigue and errors, improving overall productivity and consistency. The integration of user-friendly touchscreens and intuitive controls also speeds up setup and changeovers.
Manufacturers design modern swing beam shearing machines with durable components to withstand heavy workloads. Key durability features include:
High-quality blades: Made from hardened steel or carbide for long-lasting sharpness.
Robust frame and swinging mechanism: Engineered to minimize vibration and stress during operation.
Precision ball screws and linear guides: Ensure smooth, accurate back gauge movement.
Energy-efficient hydraulic systems: Reduce power consumption while maintaining cutting force.
These enhancements contribute to lower maintenance requirements and longer machine lifespan. Additionally, safety features such as optical protection devices and emergency stops protect operators during use.
Tip: When selecting a hydraulic swing beam shearing machine, prioritize models with CNC automation and precision back gauge systems to maximize cutting accuracy and production efficiency.
Swing beam shearing machines offer precision, versatility, and low maintenance, making them essential in metal processing. Future trends in shearing technology focus on automation and efficiency. Making informed decisions about machinery, like choosing between hydraulic and mechanical models, is crucial for business success. Tianshui Metalforming provides advanced swing beam shearing machines, delivering exceptional value through innovative features and reliable performance. Their products cater to diverse industry needs, ensuring high-quality metal cutting solutions.
A: A Swing Beam Shearing Machine is a metal cutting tool that uses a swinging blade mechanism, powered by hydraulic or mechanical systems, to shear metal sheets cleanly and accurately.
A: A Hydraulic Swing Beam Shearing Machine uses hydraulic cylinders to power a swinging upper blade, which cuts metal against a fixed lower blade, minimizing stress and distortion for precise cuts.
A: Swing Beam Shearing Machines offer high cutting precision, versatility in handling various materials, low maintenance requirements, and enhanced safety features.
A: A Swing Beam Shearing Machine uses an arc motion to reduce material distortion, ideal for thicker materials, while a Guillotine Shear cuts with a straight motion, suitable for thin sheets.
A: Industries such as automotive, aerospace, construction, and sheet metal fabrication commonly use Hydraulic Swing Beam Shears for their precision and efficiency in cutting various metals.
