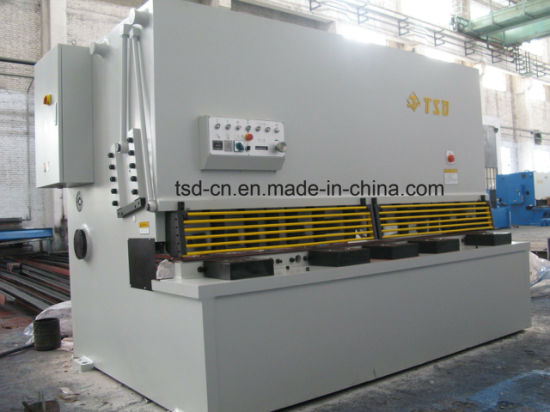

Hydraulic Swing Beam Shear
Model QC12Y-16×2500
Features:
- ASTM283M Gr.D steel to be used for fully welded construction
- Knife beam returning by nitrogen gas cylinders
- Inching, single & continuous actions
- Holding-down force increased with cutting force
- Cutting alignment light and steel wire
- Integrated valve block
- Manual clearance adjusting mechanism
- Working table with balls to feed plate conveniently
- 6CrW2Si blades
- Back gauge stroke displayed by counter with manual trimming
- Adjustable side stopper
- Electrical cabinet wind cooling
Technical Specifications
| Max. cutting thickness | 16 mm |
| Max. cutting length | 2500 mm |
| Shear angle | 2°30′ |
| Stroke | ≥8 n/minute |
| Back gauge stroke | 10-800 mm |
| Main motor power | 22 kW |
| Overall dim.(L*W*H) | 3406×2350×2180mm |
| Weight | 12700kg |
| Name Type | Shear angle (°) | Strokes (n/min) | Throat depth (mm) | Throat height (mm) | Mounting dim (mm) | Back gauge ange (mm) | Motor power (kw) | Overall dim(mm) | Weight (kg) |
| QC12Y-6×2500 | 1°30′ | ≥22 | 300 | 810 | 2950×1100 | 10-600 | 11 | 3150×1550×1655 | 5900 |
| QC12Y-6×3200 | 1°30′ | ≥18 | 300 | 810 | 3650×1200 | 10-700 | 11 | 3850×1600×1755 | 7280 |
| QC12Y-6×4000 | 1°30′ | ≥15 | 300 | 810 | 4450×1300 | 10-800 | 11 | 4650×1700×1850 | 9000 |
| QC12Y-6×5000 | 1°30′ | ≥10 | / | 910 | 5470×1400 | 10-800 | 11 | 5770×2380×2250 | 15500 |
| QC12Y-7×6000 | 1°30′ | ≥7 | / | 910 | 6550×1800 | 10-800 | 15 | 6810×2350×2250 | 23000 |
| QC12Y-8×2550 | 1°30′ | ≥11 | 300 | 800 | 2930×1250 | 10-700 | 15 | 3112×1800×1850 | 7200 |
| QC12Y-8×3050 | 1°30′ | ≥10 | 300 | 800 | 3405×1250 | 10-700 | 15 | 3857×1800×1850 | 8000 |
| QC12Y-8×4000 | 1°30′ | ≥8 | 300 | 800 | 4430×1250 | 10-700 | 15 | 4612×1800×1850 | 10250 |
| QC12Y-8×5000 | 1°30′ | ≥7 | / | 800 | 5450×1400 | 20-800 | 15 | 5790×2530×2250 | 20000 |
| QC12Y-8×6000 | 1°30′ | ≥7 | 100 | 800 | 6560×1800 | 20-700 | 15 | 6810×2530×2250 | 23000 |
| QC12Y-10×2550 | 1°30′ | ≥12 | 300 | 800 | 2965×1360 | 20-800 | 18.5 | 3112×1800×1850 | 8000 |
| QC12Y-10×3050 | 1°30′ | ≥11 | 300 | 800 | 3440×1360 | 20-800 | 18.5 | 3587×1800×1850 | 8600 |
| QC12Y-10×4000 | 1°30′ | ≥9 | 300 | 800 | 4510×1600 | 20-800 | 18.5 | 4612×1800×1850 | 10400 |
| QC12Y-12×2500 | 1°30′ | ≥9 | 300 | 800 | 3030×1300 | 10-800 | 18.5 | 3290×2215×2120 | 10000 |
| QC12Y-12×3200 | 1°30′ | ≥8 | 300 | 800 | 3730×1300 | 10-800 | 18.5 | 3990×2215×2120 | 11800 |
| QC12Y-12×4000 | 1°30′ | ≥7 | 300 | 860 | 4550×1550 | 10-800 | 18.5 | 4830×2390×2200 | 14230 |
| QC12Y-16×2500 | 2°30′ | ≥8 | 300 | 800 | 3060×1560 | 10-800 | 22 | 3406×2350×2180 | 12700 |
| QC12Y-16×3200 | 2°30′ | ≥8 | 300 | 900 | 3760×1680 | 10-800 | 22 | 4105×2325×2220 | 15000 |
| QC12Y-16×4000 | 2°30′ | ≥7 | 300 | 900 | 4560×1780 | 10-800 | 22 | 4905×2385×2250 | 17150 |
| QC12Y-20×2500 | 2°30′ | ≥6 | 300 | 880 | 3010×1650 | 20-1000 | 30 | 3400×2350×2700 | 19350 |
| QC12Y-20×3200 | 2°30′ | ≥5 | 300 | 880 | 3710×1650 | 20-1000 | 30 | 4100×2350×2730 | 22000 |
| QC12Y-20×4000 | 2°30′ | ≥5 | 300 | 880 | 4510×1650 | 20-1000 | 30 | 4900×2350×2760 | 25000 |
| QC12Y-25×2500 | 3° | ≥5 | 300 | 880 | 3116×1670 | 40-1000 | 30 | 3480×2410×2755 | 23500 |
| QC12Y-25×3200 | 3° | ≥5 | 300 | 880 | 3816×1670 | 40-1000 | 30 | 4180×2410×2690 | 27000 |
| QC12Y-25×4000 | 3° | ≥5 | 300 | 880 | 4610×1670 | 40-1000 | 37 | 4985×2410×2690 | 30550 |
| QC12Y-32×2500 | 3°30′ | ≥4 | / | 1025 | 3340×1700 | 40-1000 | 55 | 3697×3450×3000 | 32800 |
| QC12Y-32×3200 | 3°30′ | ≥4 | / | 1000 | 4040×1700 | 50-1000 | 55 | 4397×3450×3000 | 40000 |
| QC12Y-32×4000 | 3°30′ | ≥4 | / | 1025 | 4840×1700 | 60-1000 | 55 | 5230×3450×3000 | 43000 |
| QC12Y-40×2500 | 3°30′ | ≥3 | / | 1100 | 3610×2240 | 40-1000 | 75 | 4000×3770×3600 | 43000 |
Standard configuration:
- Chinese famous brand's main electrical components
- Motor: Xi'an SIMO, http://www.simo.com.cn
- Hydraulic system: Beijing Huade, China - Seal rings of main cylinders: NOK, Japan - 380 Volts/3 Phases/50Hz
Options
-Whole length blade
-Cr12MoV/H13K material blade for stainless steel cutting
-Pneumatic back supporter
-Extended side arm
Packing: Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container
