Small CNC Hydraulic Sychro Press Brake for Sheet (WE67K-160/4000)

Quantity:
  • WE67K-160/4000
  • TSD

CNC Sychro Press Brake
Model WE67K-160/4000

Press Brake with Ce Certificate (WE67K-160/3200)


Features:
- Designing by ANSYS, and Optimizing by simulation model
- ASTM283M Gr.D steel to be used for fully welded construction
-Table, Upright & Ram designed as full rigidity to ensure full loading working
- Right-and-left oil cylinder synchronization (Y1,Y2) achieved by separated Germany  electrical-hydraulic
 proportional valve with high stability .
- Fully closed loop control with high precision
- Oil cylinder crowning in table - Installing faying surfaces of oil cylinders, linear guide, working table processed
 at one time by heavy-duty floor milling machine with good parallelism and perpendicularity
- Eccentric loading working available
- Standard top tool and multi
- Vee bottom tool
- Standard back gauge with X axis and manually adjusting R axis
- Overloading overflow protection

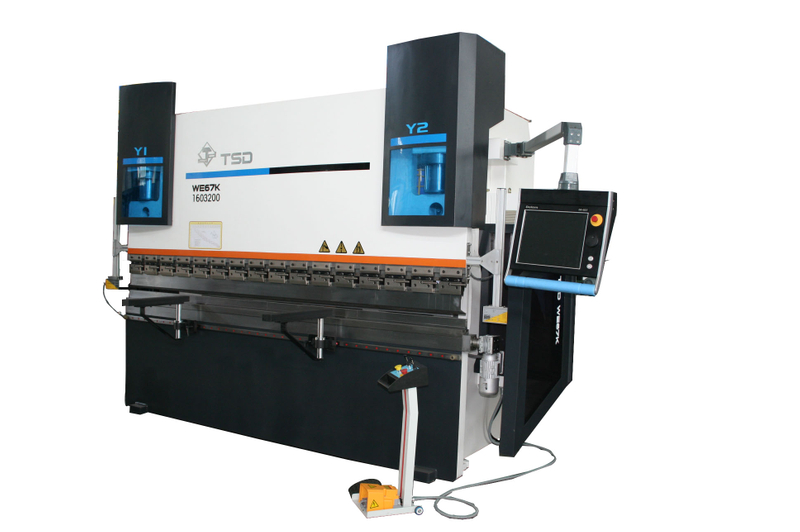

Press Brake with Ce Certificate (WE67K-160/3200)




Technical Specifications

Nominal pressure1600 kN
Length of table4000 mm
Center distance between uprights3300 mm
Throat400 mm
Stroke of ram  200 mm
Max. open height470 mm
Speed:Approaching120mm/s
Working9mm/s
Returning95mm/s
Main motor power11kW
Overall dim.(L*W*H above floor)4100*2230*2770mm
Net weight12290 kg
        Type
Name
Nominal force
(KN)
Length of table (mm)Distance between uprights(mm)Throat depth
(mm)
Ram stroke(mm) Open height (mm)working table height(mm) working table width(mm)  Ram speed                          Main motor power
(KW)
Overall dimensions(L×W×H)(cm)Weight()
Approaching    working Return
(mm/s)
WE67K-40/20004002000170020012039080060/170140111204211×143×2163020
WE67K-63/250063025002100300150420830200110101205.5256×176×2295365
WE67K-100/3200100032002700400200470900205120101007.5328×209×2538570
WE67K-100/4000100040003300400200470900205120101007.5408×209×2709900
WE67K-160/320016003200270040020047090024512099511330×223×26210580
WE67K-160/400016004000330040020047090024512099511410×223×27712290
WE67K-200/320020003200270040020047094027011099515338×221×27412340
WE67K-200/400020004000330040020047094027011099515408×221×27414310
WE67K-250/320025003200270040025052010502801001010018.5345×236×30515800
WE67K-250/400025004000330040025052010502801001010018.5425×236×31117800
WE67K-250/5000250050004300400250520105028010099018.5512×236×31118900



Standard configuration:
- CNC system DA52 up,Delem,Holland/DNC880S,Cybelec, Switzerland/ESA S530,Italy
- Electrical-hydraulic proportional synchronous valve group: Hoerbiger/Bosch,Germany
- Main electrical components: Schneider
- Optical scale Givi, Italy
- Gear pump with low noise: Nachi, Japan
- Main oil cylinder seal ring: NOK,Japan
- Ball screw and linear guide: ABBA, Taiwan
- Electrical cabinet wind cooling


Options
-Throat depth
-Top and bottom tools
-Back gauge with R, Z axis
-Light curtain
-Oil cooler/warmer
-CE certificate


Production technological process
Steel plate to warehouse →physical & chemical inspection→ steel plate ball blasting (dustproof) processing → cutting through CNC flame cutting machine → cutting and processing to each welding junction plane → compound welding→ Air protecting welding → Stress relief by electrical furnace →processing through heavy-duty floor type boring and milling machine, heavy-duty gantry milling machine → Fabrication.

Packing: Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container or in bulk.

After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this
   quality management system in our company and on our products.
   All products before ex-works have been strictly tested and are in conformity with technical agreement and
   standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer
   warranty could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
   to guide the installation, testing and training the operators from 7 days to 45 days after the machine
   reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
  (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
   included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
   firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
   free to contact the Seller.
   If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-
   sale-service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the
   former, which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and
   the long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply
   full failure description, clear pictures and videos, if possible.
   Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
   B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
   service at lowest cost.

Quality First, Customer First

TSD's R&D center is awarded as National R&D Center.We're pleased to get your Inquiry and we will come back to as soon as possible.
