Sheet Metal V Slotting Grooving Machine (RGEK1250*5000)

  • RGEK1250*5000
  • TSD


  • Frame construction. Machine frame with 20mm thickness ASTM A572 Gr 50 steel, and working table with 60mm thickness low alloy steel

  • Stress relived to whole welded machine frame

  • Machine frame processed one time by processing center to keep the parallelism and perpendicularity of installing surface

  • Surface blasting with better painting appearance

  • Cross beam type feeding and cutting with low noise

  • Double guide rails structure with stable moving

  • X axis with work feeding control

  • Universal cutter clamp mounting face; White steel cutter & alloy cutter are exchangeable.

  • Hydraulically clamping sheet metal, and hold-down force is adjustable.

  • High precision guide system, position measuring and hydraulic balance function without scratching on sheet surface as possible

  • With accumulator on hydraulic system

  • Processing V slotting by 4 cutters to reduce the sheet deformation

  • Cross beam with tin-bronze inclined gear, forged helical rake and mute guide rail to keep the stable cutting.

  • Cross beam transferring speed adjusted by frequency converter

  • Mute ball screw and heavy loading linear guide on transfer device of knife beam with high precision

  • Longitudinal and transverse processing are available, including up and down processing of sheet metal

  • Easy operating by inputting processing steps on keyboard

  • Processing steps can be knew by screen

  • With servo motor and sensor to ensure the safety of operator

  • Fault alarm and diagnose

  • Working table self-healing function by self-digging to keep the processing precision

  • Reliable electrical components

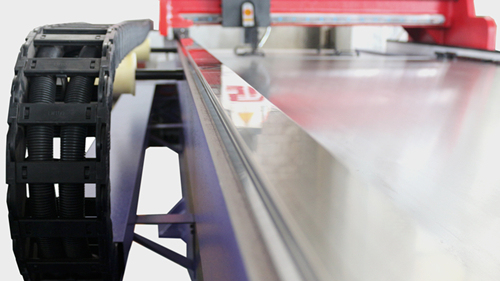

Sheet Metal Grooving Machine (RGEK1250*5000)
Sheet Metal Grooving Machine (RGEK1250*5000)

Sheet Metal Grooving Machine (RGEK1250*5000)

Sheet Metal Grooving Machine (RGEK1250*5000)

Sheet Metal Grooving Machine (RGEK1250*5000)

Technical parameters

No.NameUnitRGEK 1250×4000RGEK 1250×5000RGEK 1250×6000
1Max.grooving widthmm125012501250
2Max.grooving lengthmm400050006000
3Max.stainless steel grooving thicknessmm444
4Min.stainless steel grooving thicknessmm0.50.50.5
5Min.distance from V center to sheet edgemm888
6Max.cutting speed of X axism/min707070
7Max.returning speed of X axism/min808080
8Max.distance of Y1 axismm125012501250
9Resolution of Y1 axismm0.0010.0010.001
10Repeated positioning accuracymm±0.02±0.02±0.02
11Resolution of Z axismm0.0010.0010.001
12Repeated positioning accuracymm±0.02±0.02±0.02
13Motor powerX axiskW5.55.55.5
Y1,Y2,Z axis111
14Overall dim.(L×W×H)mm6150×2320×15607150×2320×15608150×2320×1560
Note: X axis → Control front & back moving of cross-beam

Y1 axis →  Control left & right moving of knife beam

Y2 axis →  Control the moving of following oil cylinder

Z   axis  →  Control up & down moving of knife beam

Main configuration
1CNC systemEdraw,Taiwan

Penumatic controllerRexpower,Taiwan

Gear box
2Hydraulic systemTaiwan
3Frequency converterMitsubishi,Japan
4Cooling systemBIJUR, USA
5Servo motorDelta,Taiwan
6Seal ringValqua,Japan
7Proximity switchOmron, Japan
8Main motorSEW, Germany
9Air switchSchneider
10AC contactor,thermal relaySchneider
11breaker & buttonSchneider
12Alloy bladeKorloy,Korea
13Ball type linear guideHTPM,Germany

Sapre parts list
1Foundation screw
2Spring tube
3O seal ring
4Combined washer
5Cutter bar
6White steel blade

Tools complete with machine
1Feeler block1 pcs
2Feeler gauge1 set
3Internal hexagonal wrench1 set
4High pressure oil gun1 pcs
5Grease gun1 pcs


  • Mini cooling system for cutter to extend the life of cutter

  • CE certificate

1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
   management system in our company and on our products.
  All products before ex-works have been strictly tested and are in conformity with technical agreement and
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
   could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
   to guide the installation, testing and training the operators from 7 days to 45 days after the machine
   reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
  (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
   included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
   firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
   free to contact the Seller.
   If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
   which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
   long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
   failure description, clear pictures and videos, if possible.
   Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
   B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
   service at lowest cost.
