QC12Y-16*4000
TSD

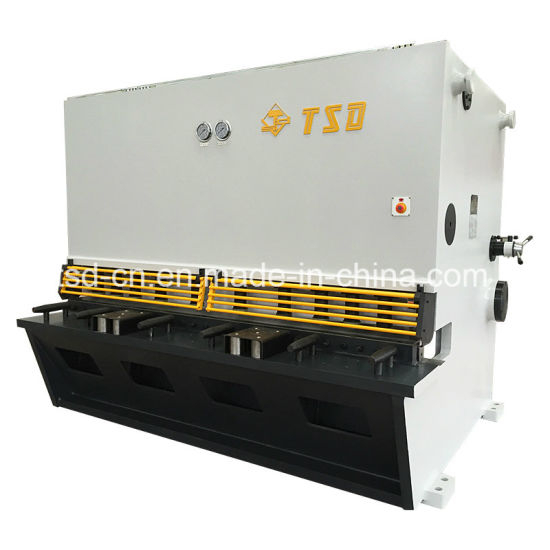

Hydraulic Swing Beam Shear
Model QC12Y-16×4000
Features:
- ASTM283M Gr.D steel to be used for fully welded construction
- Knife beam returning by nitrogen gas cylinders
- Inching, single & continuous actions
- Holding-down force increased with cutting force
- Cutting alignment light and steel wire
- Integrated valve block
- Manual clearance adjusting mechanism
- Working table with balls to feed plate conveniently
- 6CrW2Si blades
- Back gauge stroke displayed by counter with manual trimming
- Adjustable side stopper
- Electrical cabinet wind cooling
Technical Specifications
| Max. cutting thickness | 16 mm |
| Max. cutting length | 4000 mm |
| Shear angle | 2°30′ |
| Stroke | ≥7 n/minute |
| Back gauge stroke | 10-800 mm |
| Main motor power | 30 kW |
| Overall dim.(L*W*H) | 4905×2385×2250 |
| Weight | 17150 kg |
| Name Type | Shear angle (°) | Strokes (n/min) | Throat depth (mm) | Throat height (mm) | Mounting dim (mm) | Back gauge ange (mm) | Motor power (kw) | Overall dim(mm) | Weight (kg) |
| QC12Y-6×2500 | 1°30′ | ≥22 | 300 | 810 | 2950×1100 | 10-600 | 11 | 3150×1550×1655 | 5900 |
| QC12Y-6×3200 | 1°30′ | ≥18 | 300 | 810 | 3650×1200 | 10-700 | 11 | 3850×1600×1755 | 7280 |
| QC12Y-6×4000 | 1°30′ | ≥15 | 300 | 810 | 4450×1300 | 10-800 | 11 | 4650×1700×1850 | 9000 |
| QC12Y-6×5000 | 1°30′ | ≥10 | / | 910 | 5470×1400 | 10-800 | 11 | 5770×2380×2250 | 15500 |
| QC12Y-7×6000 | 1°30′ | ≥7 | / | 910 | 6550×1800 | 10-800 | 15 | 6810×2350×2250 | 23000 |
| QC12Y-8×2550 | 1°30′ | ≥11 | 300 | 800 | 2930×1250 | 10-700 | 15 | 3112×1800×1850 | 7200 |
| QC12Y-8×3050 | 1°30′ | ≥10 | 300 | 800 | 3405×1250 | 10-700 | 15 | 3857×1800×1850 | 8000 |
| QC12Y-8×4000 | 1°30′ | ≥8 | 300 | 800 | 4430×1250 | 10-700 | 15 | 4612×1800×1850 | 10250 |
| QC12Y-8×5000 | 1°30′ | ≥7 | / | 800 | 5450×1400 | 20-800 | 15 | 5790×2530×2250 | 20000 |
| QC12Y-8×6000 | 1°30′ | ≥7 | 100 | 800 | 6560×1800 | 20-700 | 15 | 6810×2530×2250 | 23000 |
| QC12Y-10×2550 | 1°30′ | ≥12 | 300 | 800 | 2965×1360 | 20-800 | 18.5 | 3112×1800×1850 | 8000 |
| QC12Y-10×3050 | 1°30′ | ≥11 | 300 | 800 | 3440×1360 | 20-800 | 18.5 | 3587×1800×1850 | 8600 |
| QC12Y-10×4000 | 1°30′ | ≥9 | 300 | 800 | 4510×1600 | 20-800 | 18.5 | 4612×1800×1850 | 10400 |
| QC12Y-12×2500 | 1°30′ | ≥9 | 300 | 800 | 3030×1300 | 10-800 | 18.5 | 3290×2215×2120 | 10000 |
| QC12Y-12×3200 | 1°30′ | ≥8 | 300 | 800 | 3730×1300 | 10-800 | 18.5 | 3990×2215×2120 | 11800 |
| QC12Y-12×4000 | 1°30′ | ≥7 | 300 | 860 | 4550×1550 | 10-800 | 18.5 | 4830×2390×2200 | 14230 |
| QC12Y-16×2500 | 2°30′ | ≥8 | 300 | 800 | 3060×1560 | 10-800 | 22 | 3406×2350×2180 | 12700 |
| QC12Y-16×3200 | 2°30′ | ≥8 | 300 | 900 | 3760×1680 | 10-800 | 22 | 4105×2325×2220 | 15000 |
| QC12Y-16×4000 | 2°30′ | ≥7 | 300 | 900 | 4560×1780 | 10-800 | 22 | 4905×2385×2250 | 17150 |
| QC12Y-20×2500 | 2°30′ | ≥6 | 300 | 880 | 3010×1650 | 20-1000 | 30 | 3400×2350×2700 | 19350 |
| QC12Y-20×3200 | 2°30′ | ≥5 | 300 | 880 | 3710×1650 | 20-1000 | 30 | 4100×2350×2730 | 22000 |
| QC12Y-20×4000 | 2°30′ | ≥5 | 300 | 880 | 4510×1650 | 20-1000 | 30 | 4900×2350×2760 | 25000 |
| QC12Y-25×2500 | 3° | ≥5 | 300 | 880 | 3116×1670 | 40-1000 | 30 | 3480×2410×2755 | 23500 |
| QC12Y-25×3200 | 3° | ≥5 | 300 | 880 | 3816×1670 | 40-1000 | 30 | 4180×2410×2690 | 27000 |
| QC12Y-25×4000 | 3° | ≥5 | 300 | 880 | 4610×1670 | 40-1000 | 37 | 4985×2410×2690 | 30550 |
| QC12Y-32×2500 | 3°30′ | ≥4 | / | 1025 | 3340×1700 | 40-1000 | 55 | 3697×3450×3000 | 32800 |
| QC12Y-32×3200 | 3°30′ | ≥4 | / | 1000 | 4040×1700 | 50-1000 | 55 | 4397×3450×3000 | 40000 |
| QC12Y-32×4000 | 3°30′ | ≥4 | / | 1025 | 4840×1700 | 60-1000 | 55 | 5230×3450×3000 | 43000 |
| QC12Y-40×2500 | 3°30′ | ≥3 | / | 1100 | 3610×2240 | 40-1000 | 75 | 4000×3770×3600 | 43000 |
Standard configuration:
- Chinese famous brand's main electrical components
- Motor: Xi'an SIMO, http://www.simo.com.cn
- Hydraulic system: Beijing Huade, China - Seal rings of main cylinders: NOK, Japan - 380 Volts/3 Phases/50Hz
Options
-Whole length blade
-Cr12MoV/H13K material blade for stainless steel cutting
-Pneumatic back supporter
-Extended side arm
Packing: Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container
After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
management system in our company and on our products.
All products before ex-works have been strictly tested and are in conformity with technical agreement and
standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
to guide the installation, testing and training the operators from 7 days to 45 days after the machine
reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
(USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
free to contact the Seller.
If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
which is helpful for customers' special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
failure description, clear pictures and videos, if possible.
Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
service at lowest cost.
