Y41-160
TSD

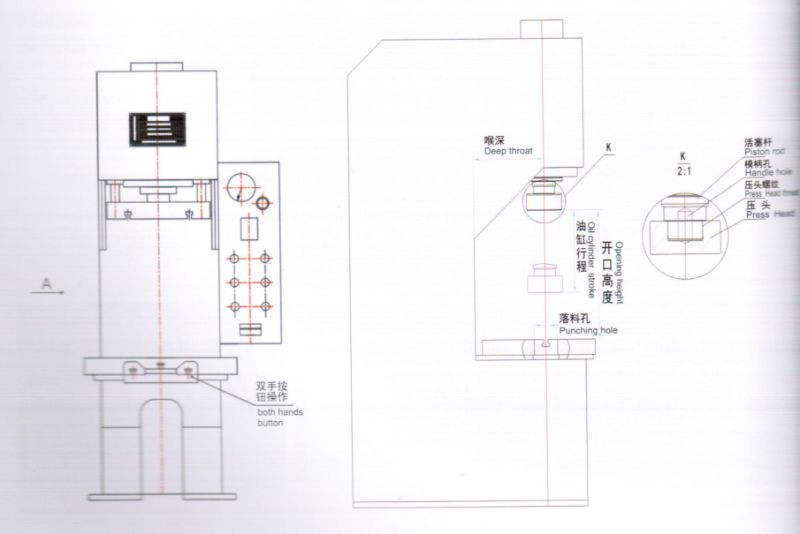

Deep Throat C Type Single Column Hydraulic Press
model:Y41-160
Features:
- Welded machine frame to relieve the inner stress by furnace
- C type deep throat
- Guiding of slide block with high rigidity round guide rail
- Slide block connecting piston rod of oil cylinder to move upward and downward with four guiding columns.
- With T slotting on working table and slide block used to install tooling.
- One piston cylinder to achieve main pressure
- Closed oil tank
- Pressure over loading protection function for hydraulic system with small impact
- Standalone electrical cabinet in the right of machine
- Centralized operating panel with working indicator
- With adjustment and semi-automatic operations
- Emergency stop button can stop machine in emergency circumstances
- With proximity switch on speed changing point, adjustable top limit position point and fixed stroke point to make machine long life.
- Top and bottom limit positions of oil cylinder controlled by stroke switches to ensure the safe working of oil cylinder
Deep Throat C Type Single Column Hydraulic Press
model:Y41-160
Features:
- Welded machine frame to relieve the inner stress by furnace
- C type deep throat
- Guiding of slide block with high rigidity round guide rail
- Slide block connecting piston rod of oil cylinder to move upward and downward with four guiding columns.
- With T slotting on working table and slide block used to install tooling.
- One piston cylinder to achieve main pressure
- Closed oil tank
- Pressure over loading protection function for hydraulic system with small impact
- Standalone electrical cabinet in the right of machine
- Centralized operating panel with working indicator
- With adjustment and semi-automatic operations
- Emergency stop button can stop machine in emergency circumstances
- With proximity switch on speed changing point, adjustable top limit position point and fixed stroke point to make machine long life.
- Top and bottom limit positions of oil cylinder controlled by stroke switches to ensure the safe working of oil cylinder
Main technical data
No. | Name | Unit | Value | |
1 | Nominal pressure | kN | 1600 | |
2 | Working pressure of fluid | Mpa | 25 | |
3 | Max.opening height | mm | 1000 | |
4 | Ram stroke | mm | 500 | |
5 | Throat depth | mm | 325 | |
6 | Ram speed | Approaching | mm/s | 20 |
Working | mm/s | 8 | ||
Returning | mm/s | 100 | ||
7 | Size of working table | Front-back | mm | 750 |
Left-right | mm | 630 | ||
8 | Height between table and floor | mm | 650 | |
9 | Diameter of blanking hole | mm | 200 | |
10 | Motor power | kW | 15 |
Main technical data
No. | Name | Unit | Value | |
1 | Nominal pressure | kN | 1600 | |
2 | Working pressure of fluid | Mpa | 25 | |
3 | Max.opening height | mm | 1000 | |
4 | Ram stroke | mm | 500 | |
5 | Throat depth | mm | 325 | |
6 | Ram speed | Approaching | mm/s | 20 |
Working | mm/s | 8 | ||
Returning | mm/s | 100 | ||
7 | Size of working table | Front-back | mm | 750 |
Left-right | mm | 630 | ||
8 | Height between table and floor | mm | 650 | |
9 | Diameter of blanking hole | mm | 200 | |
10 | Motor power | kW | 15 |
After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
management system in our company and on our products.
All products before ex-works have been strictly tested and are in conformity with technical agreement and
standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
to guide the installation, testing and training the operators from 7 days to 45 days after the machine
reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
(USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
free to contact the Seller.
If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
which is helpful for customers' special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
failure description, clear pictures and videos, if possible.
Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
service at lowest cost.
After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
management system in our company and on our products.
All products before ex-works have been strictly tested and are in conformity with technical agreement and
standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
to guide the installation, testing and training the operators from 7 days to 45 days after the machine
reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
(USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
free to contact the Seller.
If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
which is helpful for customers' special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
failure description, clear pictures and videos, if possible.
Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
service at lowest cost.
