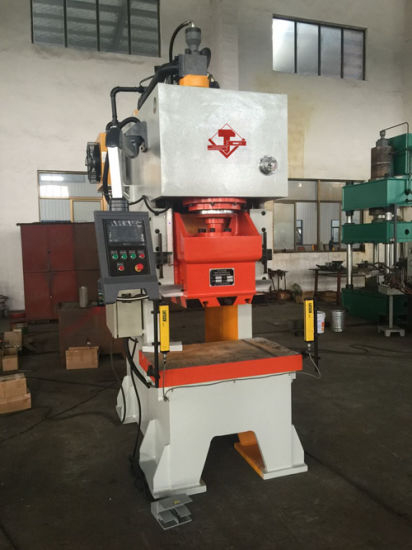

Single Column Hydraulic Punching Press (Y21-200)

Quantity:
  • Y21-200
  • TSD

Characteristics:
- Computer optimized vertical C-frame structure with high rigidity
- Attractive and neat appearance, with driving system inside the frame
- Manual directional control valve is adopted in hydraulic system for easy speed regulation
- Handle operation or Pedal operation at operator's choice
- Stroke and pressure can be adjusted within specified scope.

Technical data:
Nominal pressure 2000kN

Max. hydraulic pressure 20MPa
Max. stroke of ram 200mm
Throat depth 420mm
Number of stroke 20~40 n/minute
Ram speed
Empty descending 250mm/s
Pressing speed 20~30mm/s
Returning speed 200mm/s
Working table size (L-R to F-B) 1300*700mm
Ram size (L-R to F-B) 580*620mm
Height from table to floor 710mm
Motor power 22kW


After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
   management system in our company and on our products.
  All products before ex-works have been strictly tested and are in conformity with technical agreement and
  standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
   could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
   to guide the installation, testing and training the operators from 7 days to 45 days after the machine
   reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
  (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
   included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
   firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
   free to contact the Seller.
   If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
   service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
   which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
   long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
   failure description, clear pictures and videos, if possible.
   Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
   B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
   service at lowest cost.




Quality First, Customer First

TSD's R&D center is awarded as National R&D Center.We're pleased to get your Inquiry and we will come back to as soon as possible.
