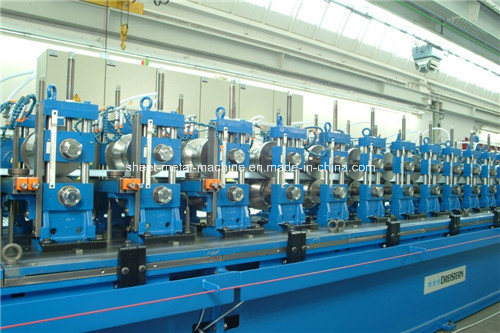

Z Channel Roofing Roll Forming Machine

Quantity:
  • TSD

MATERIAL:

(1)Suitable Coil Thickness: 2.0-3.0 mm
(2)Suitable Raw Materials: 235 A

MACHINE COMPONENTS
(1) Manual Un-coiler 1 set
(2) Leveling Device 1 set
(3) Roll-Forming M/C 1 set
(4) Hydraulic cutting (with four cutting mould) 1 set
(5) PLC Control System 1 set
(6) Product rack (un-powered) 1 set


TECHNICAL SPECIFICATION

(1) Manual Un-coiler:
Un-powered; single head; max. Capacity: 3000kg;
Coil inner-diameter: 508mm

(2) Leveling Device
It used for making the material flat before feeding into the roll forming machine.

(3) Roll-Forming M/C
Steps 13 Material of Roller GCr 15; Voltage:380V/50Hz
Shaft diameter 80mm
Roller material 45 steel(Cr coating)
Total power 4.5 KW
(4) Hydraulic Cutting
Stop to cut ,Post cut Cutting tool material:Cr12,
tolerance of the cutting length 4mm
It has four cutting mould with the line.
If the customer wants to more cutting mould, he has to pay for the extra moulds.

(5) PLC Control System
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
Option Hydraulic un-coiler
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed,
Automatic stop device;Load capacity = Max.3Tons;


Z Purlin Dimensions Table

Model

Section Sizes(mm)

Hole Distance(mm)

h

b

c

t

Z100

100

55

20

2.0-3.0

40

Z120

120

55

20

2.0-3.0

Changable

Z140

140

55

20

2.0-3.0

Changable

Z150

150

67

20

2.0-3.0

Changable

Z160

160

67

20

2.0-3.0

Changable

Z180

180

67

20

2.0-3.0

Changable

Z200

200

67

20

2.0-3.0

Changable

Z250

250

78

20

2.0-3.0

Changable

Z280

280

78

20

2.0-3.0

Changable

Z300

300

78

20

2.0-3.0

Changable


After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
management system in our company and on our products.
All products before ex-works have been strictly tested and are in conformity with technical agreement and
standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
to guide the installation, testing and training the operators from 7 days to 45 days after the machine
reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
(USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
free to contact the Seller.
If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
which is helpful for customers' special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
failure description, clear pictures and videos, if possible.
Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
service at lowest cost.

Quality First, Customer First

TSD's R&D center is awarded as National R&D Center.We're pleased to get your Inquiry and we will come back to as soon as possible.
