BWQ-300-1500
TSD

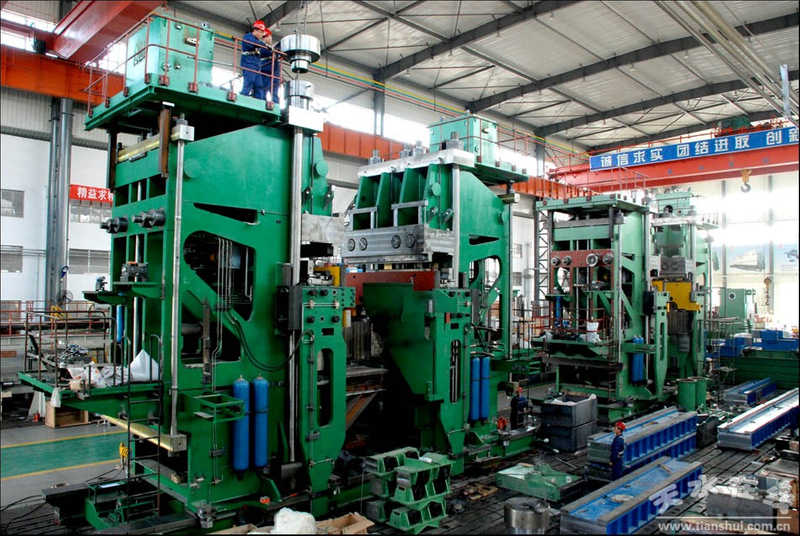

Plate Crimping Press
model BWQ-300-1500
Pipe specifications:
Plate length: 8000-12000mm
Plate thickness: 6--22mm
Steel grade: X70 (API 5L)
Production capacity: 7 pieces/ hour
Features:
- Used in LSAW production line
- Two crimping presses arranged oppositely
- Prebend plate edges to ensure the roundness of pipe and reduce the overlong straight edge.
- Step feeding
- Small flanging force and wider range for curvature radius of flange plate
- CNC control
- Easy to operate
Main specifications
| Name | Unit | Quantity | Remark |
| Single-side press power of die | KN | 3000 | |
| Single-side packing force of die | KN | 290×2 | |
| Working pressure of suppression cylinder, pressing cylinder | MPa | max 26 | |
| Lifting strokes of low-die-beam | mm | max 200 | |
| Lifting strokes of pressing-beam | mm | Max.70 | |
| The distance between upper bus-bar of roller and lower limb of upper | mm | 45 | |
| Die length | mm | 1500 | |
| Useful length of die | mm | 800 | |
| Changeover portion of low die | mm | Entrance 600 Outlet 100 | |
| Crimp stepping length of steel plate | mm | 700 | |
| Width range of pre-bend both sides steel plate | mm | 1200~2600 | |
| Moving distance of left-right frame | mm | About 750 | |
| Driving Motor power of left-right frame moving | kW | 5.5 | Total 1 set of left, right. |
| Stroke speed of left-right frame | mm/min | 480 | Opposite moving synchronously. |
| Moving distance of left-right dies | mm | 250 | |
| Moving speed of left-right dies | mm/min | 260 | |
| Total installating power of machine | kW | 183 | Including main and auxiliary machine. |
