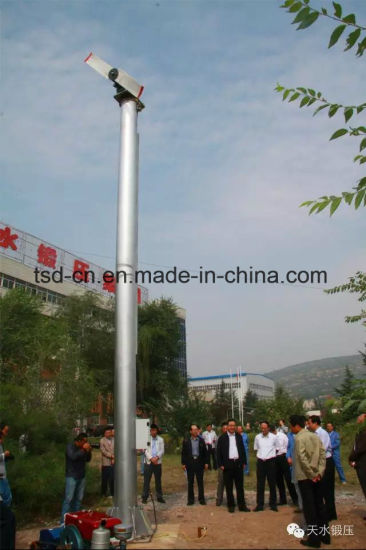

Orchard Fan with Two Blades
Working principle in orchard:
In the early spring and late autumn, the air temperature drops because of cool air invasion, especially in the clear & ash-breeze morning and night. When the surface temperature of fruit tree drops under 0ºC, the frost is heavy.
The orchard fan can make the surface temperature of fruit free higher than 0ºC by blowing the wind to mix the high temperature air of high area and the low temperature air around floor, so as to prevent from the frost and low temperature damage.
Working principle in Tea plantation: .
On the clear & ash-breeze night of early spring, it is easy to be happened for late e crown frost. The temperature of low-lying place in tea plantation is lowest, whose frost is heavy. Thlayer temperature of individual tea tree is uneven. The temperature of north-west of upper crown layer is lowest. So it is useful for disturbing the thermal inversion layer near the floor by Tea plantation fan, and blowing the warm air to the lower of crown layer of tea tree to rise the temperature and prevent from the frost. Before the sunrise, the thermal inversion layer gradually vanishes. The temperature near floor is lower than the crown layer of tea tree. At that time, the tea plantation fan can ease the fast temperature rise of crown layer lamina to avoid the stress damage.
-Electric generator driving
-Suitable for hills, land in slope and terrace with small height difference
|1||Power source||Power supply/ Diesel generator|
|2||Diesel generator power||kW||15|
|3||Driving power of electromotor||r/min.||5.5|
|4||Min.diesel consumption at full loading||litre/h||< 4.3|
|5||Rated turning speed of electromotor||r/min.||980|
|6||Rated turning speed of fan blade||r/min.||980|
|7||Quantity of fan blade||pcs.||2|
|8||Rated turning speed of top gear box||r/min.||0.16|
|9||Covering diameter of blade||mm||2100±5.0|
|10||Center height of machine||mm||8000±10.0|
|13||Optional intelligent temperature control only when power source is power supply.||Automatic starting below setting lowest natural temperature, and automatic stopping above setting highest natural temperature.|
|14||Max. packing quantity in container||9 sets fans packed in 1*40'standard container|
Generator-famous manufacturer in China
Electric box-famous manufacturer in China
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this
quality management system in our company and on our products.
All products before ex-works have been strictly tested and are in conformity with technical agreement and
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer
warranty could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
to guide the installation, testing and training the operators from 7 days to 45 days after the machine
reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
(USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
included in the offer. This clauses will be shown in the contract.
4. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
free to contact the Seller.
If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-
5. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the
former, which is helpful for customers' special designing requirements.
6. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and
the long term technical consultant service is available.
7. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply
full failure description, clear pictures and videos, if possible.
Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
8. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
service at lowest cost.
